|Color:||Customized||Material:||Glass Fused To Steel|
|Acid And Alkalinity Proof ::||Standard Sheet PH：3～11; Special Sheet PH： 1～14||Coating Color:||Ark Green, White, Blue, Color Can Be Customized Upon Your Request|
|Holiday Test:||> 1500 V||Corrosion Resistance:||Excellent. Suitable For Waste Water Treatment, Sewage Treatment, Effluent Treatment.、salt Water、sea Water、high-sulfur Crude Oil、salt Fox、organic And Inorganic Compounds|
|Service Life:||More Than 30 Years||Capacity:||20 M3 - 18,000 M3|
|Coating Thickness:||0.25mm ～0.40mm ,double Coating|
commercial water storage tanks,
fixed roof storage tank

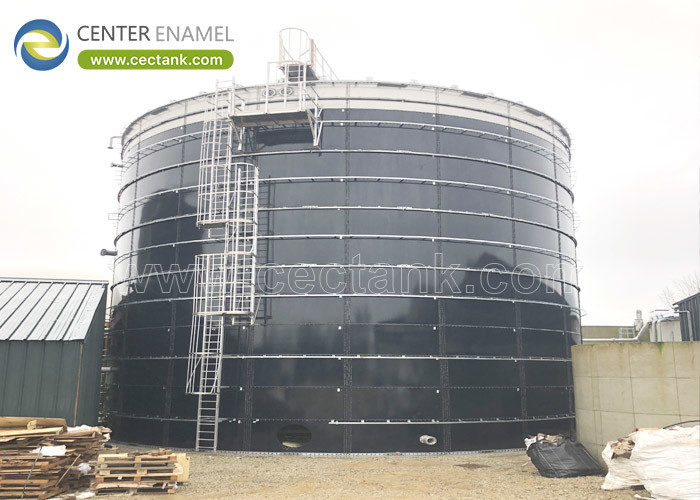

Glass-Fused-To-Steel Industrial Effluent Tanks Reach European Standards
The Glass-Fused-to-Steel tank is consist of modular enamel coating steel sheet together with special sealant, self-locking bolts. With the enamel coating, the tanks are with strong corrosion resistance ( can used for liquid whose PH is PH1-14). These natures give customers significant benefits in containment security, project build times and life-time costs.
The Glass-Fused-to-Steel tanks can be used in industrial processes from food waste to tannery effluent / sewage / wastewater treatment.
Our Glass fused to steel tanks surpass other companies’ tanks because below reason:
1. Use the special steel ART310 which can not only greatly Increase the adhesive power between steel and enamel coating, but also solve fish scaling problem and improve the steel yield strength after firing. The special steel ART310 is our patent technology.
2. Our glass fused to steel tank has already passed the ISO9001-2000 quality system certification and also reach AWWA D103-09 standard, OSHA and meet European standards.
3. We are the only enterprise that can produce AA grade (acid proof and alkali proof ) enameled sheet now.
Features of the glass fused to steel tank:
Adhesion : 3,450 N/cm
Elastic: Same as steel sheet,around 500 Kn /mm
Hardness : 6.0 ( Mohs )
Coating Color : dark green, white, blue, color can be customized upon your request
Coating Thickness : 0.25mm ～0.40mm ,double coating
Acid and alkalinity proof : Standard sheet PH:3～11; Special sheet PH: 1～14
Service life : more then 30Years
Holiday test: >1500v
Permeability : Gas / liquid impermeable. It’s very suitable for waste water treatment, biogas digester.
Easy to clean : The Smooth, glossy, inert, non adhesive
Corrosion resistance: Excellent. suitable for waste water treatment, sewage treatment, effluent treatment.,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds
Application fields introduction:
