|Coating Color:||Dark Green, Or Customizing Colors||Coating Thickness:||0.25~0.40mm, Double Coating|
|Acid And Alkalinity Proof:||Standard PH: 3~11, Special PH: 1~14||Adhesion:||3,450N/cm|
|Hardness:||6.0 Mohs||Holiday Test:||>1500V|
|Installation:||By Jacking Machine Or Steel Pole, Fast In Installation||Easy To Clean:||Smooth, Glossy, Inert, Anti-adhesion|
|Permeability:||Gas / Liquid Impermeable||Foundation:||Concrete Or Glass Fused Steel|
|Steel Grade:||ART 310|
6.0 Mohs Glass Fused Steel Tanks,
Smooth Glass Fused Steel Tanks
Dismantled,Removed And Relocated Glass Fused to Steel Flocculation Tanks
Flocculation and sedimentation are technological processes used for wastewater treatment projects. Flocculation is a process wherein colloids come out of suspension in the form of floc, either spontaneously or due to the addition of a clarifying agent. It is used in applications like water purification, sewage treatment, cheese production, and brewing, for example.
Glass Fused to Steel Flocculation Tanks
Glass Fused to Steel flocculation tanks are fusing two materials at 820°C-930°C high temperature to achieve the best properties of both the strength and flexibility of steel and the corrosion of resistance of glass. Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market. Compared with the welded steel tank, Our glass fused to steel flocculation tanks is in a bolted tank design, which is easy to be assembled, and can be easily dismantled, removed, and relocated.
Glass Fused to Steel Flocculation Tanks Specifications
|Coating color||dark blue, dark green , white, and customized|
|A standard steel plate size||effective size 2400mm x 1200 m|
|Steel plates thickness||3mm - 12mm , depends on the diameter & height|
|Coating thickness||0.25mm - 0.4mm, two coating internal and external|
|Acid and alkalinity proof||standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14|
|Elastic||same as steel sheet , around 500KN/mm|
|Service life||>30 years|
|Spark test||>1500 V|
|Permeability||gas and liquid impermeable|
|Easy yo clean||smooth, glossy, inert, anti-adhesion|
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Glass Fused to Steel Flocculation Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing, and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

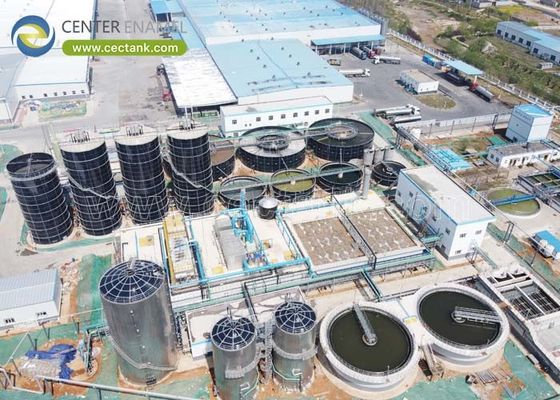

Glass Fused to Steel Flocculation Tanks Project References
Contact Person: Miss.Melody wong
Acid and alkalinity proof: standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Usage: waste water treatment , sewage treatment, effluent treatment, ect.
Corrosion resistance: excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Spark test: >1500 V
