600 000 Gallon Glass Lined Water Storage Tanks For Fire Protection Water Storage

600 000 Gallon Glass Lined Water Storage Tanks For Fire Protection Water Storage
600 000 Gallon Glass Lined Water Storage Tanks For Fire Protection Water Storage

Large Image :  600 000 Gallon Glass Lined Water Storage Tanks For Fire Protection Water Storage

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20161124020
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Adhesion: 3,450N/cm Hardness: 6.0Mohs
Service Life: ≥30 Years Permeability: Gas / Liquid Impermeable
Capacity: 20 M3 To 18,000 M3 Tank Material: Glass Fused To Steel
High Light:

glass coated steel tanks

,

porcelain enamel glass lined tank

600 000 Gallon Glass Lined Steel For Fire Protection Water Storage





Our glass lined steel tanks are made from high quality Glass-Fused-to-Steel panels. All the Glass-Fused-to-Steel panels and tanks accessories are manufactured in factory and are bolted together at the desired location. Our glass lined steel tank is the perfect choice for fire protection water storage.



Standard sizes for glass lined steel tanks go up to almost 20000m³; however, custom sizes and dimensions are also available. Center Enamel also offers multiple roof options: Glass-Fused-to-Steel roof with external/internal beams, Aluminum Alloy Trough Deck Roofs, FRP Roofs,Aluminum Dome Roofs. Bolted steel tanks can be disassembled and moved as needed and installed quickly by a small team.



Glass Lined Steel Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds





Bolted storage tank is the best choice for 200000 Gallon fire protection water storage. Over 30 years of bolted steel tanks manufacture experience, Center Enamel has become the bolted steel tanks industry leader in Asia and is certified to ISO9001, NSF61LFGB, BSCI and other international standards. And our bolted steel tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life. Also, our bolted steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Project References

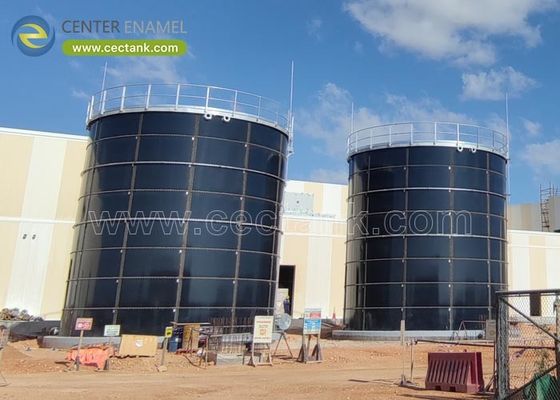

600 000 Gallon Glass Lined Water Storage Tanks For Fire Protection Water Storage 0
