18000m3 Sludge Water Holding Tanks , Glass Fused To Steel Water Storage Tanks

18000m3 Sludge Water Holding Tanks , Glass Fused To Steel Water Storage Tanks
18000m3 Sludge Water Holding Tanks , Glass Fused To Steel Water Storage Tanks

Large Image :  18000m3 Sludge Water Holding Tanks , Glass Fused To Steel Water Storage Tanks

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20171016010
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Supply Ability: 60 sets per month
Detailed Product Description
Design Life: 50years Capacity: 20 M3 To 18,000 M3
Tank Body Color: Dark Green / Can Be Customized Foundation: Concrete Or Glass Fused Steel
Size Of Panel: 2.4M * 1.2M Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect
High Light:

18000m3 Sludge Water Holding Tanks

,

inert Sludge Water Holding Tanks

,

Glass Fused Water Storage Tanks

Sludge Water Holding Tanks , Glass Fused to Steel Water Storage Tanks Large Volume



Glass Fused to Steel Water Storage Tanks are mainly composed of steel sheet ,special sealant and the self-locking bolts .It is not complex in structure and easy to ship to the construction site . The prime components of the kit are the glass-fused-to-steel panels, ready for bolting together and complete with any special cut-outs for nozzles and/or manways or other appurtenances as required. The panels overlap and are bolted together and sealed with a high performance seal Our Glass Fused to Steel proprietary bolts are finless and are safe to use with glass fused to steel bolted tanks.. All the bolt heads are plastic-capped to provide corrosion protection in the process environment. Mastic squeezes out between the panels and the bolt head seals the shank and protects it from contact with process fluids.



Application of Glass Fused to Steel Water Storage Tanks



industrial effluent storage tanks

Anaerobic digestion and biogas tanks

Process water tanks

Food waste treatment tanks

Brewery and Beverage Waste Tanks

Desalination tanks

Bulk solid storage silos

Leachate storage

Fish farm tanks

Firewater tanks

Tannery effluent tanks

Scrubber tanks

Fuel storage

Hazardous Liquid storage

Mining process tanks



Glass Fused to Steel Water Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



Glass Fused to Steel Water Storage Tanks Manufacturer

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in potable/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Glass Fused to Steel Water Storage Tanks Project References

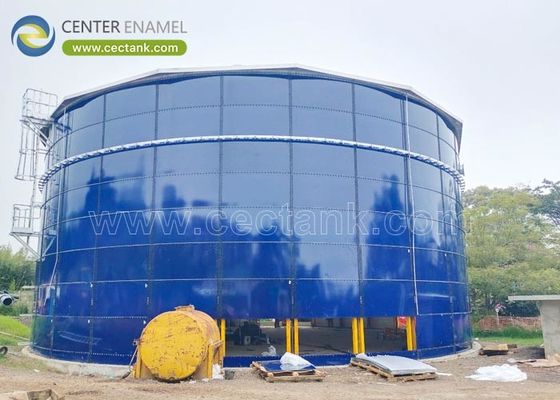

18000m3 Sludge Water Holding Tanks , Glass Fused To Steel Water Storage Tanks  0
