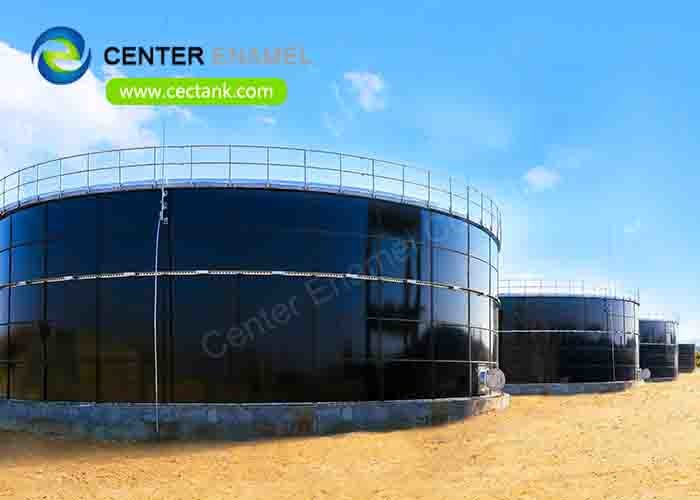

0.4mm Coating Thickness Glass Fused To Steel Water Storage Tanks

0.4mm Coating Thickness Glass Fused To Steel Water Storage Tanks
0.4mm Coating Thickness Glass Fused To Steel Water Storage Tanks

Large Image :  0.4mm Coating Thickness Glass Fused To Steel Water Storage Tanks

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W2016012741
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
PH Range: 1~14 Impact Resistance: Excellent
Weather Extremes: Excellent Erection Time: Short
Freight Cost: Low Relocation Capability: Yes
Corrosion Integrity: Excellent
High Light:

0.4mm Coating Thickness Water Storage Tanks

,

PH3 Water Storage Tanks

,

500KN/mm Water Storage Tanks

Leading Glass Fused-To-Steel Water Storage Tanks Manufacturer and Supplier in China



Center Enamel is the leading Glass Fused-To-Steel Water Storage Tanks Manufacturer and Supplier in China. Our glass-fused-to-steel (porcelain enamel) plate is integrated porcelain enamel and steel material fused together at 820°C-930°C, creating a hard inert, inorganic coating that never needs painting. Glass-fused-to-steel technology is the premium technology in the tank market.



Glass Fused-To-Steel Water Storage Tanks are considered to have advantages over other storage tank applications. Center Enamel can provide and install storage tanks for customers. For projects with storage requirements of more than 20 cubic meters, it is recommended to use this storage tank. These storage tanks can be used in industrial applications (including mines) and can be used to store materials such as waste water, sewage, sewage, drinking water, fire fighting water, and desalinated water.



Quality assurance



Quality assurance and durability. This concept is reflected in the quality of the enamel assembly tank, which exceeds the requirements of international enamel standards. According to the structural requirements of AWWA D103-09 Structural Design Behavior Standard, the working life of Zhengzhong Technology's FRP bolt storage tank is 30 years.



Advantages of Glass Fused-To-Steel Water Storage Tanks

long life

Lower cost of capital

Low maintenance cost

Fast installation time

Economic global shipments

Optimal corrosion resistance



The on-site installation of glass fused to steel storage tanks includes a unique jacking system. Once the starter plate (bottom ring) is embedded in the concrete foundation or designed and built with glass-coated bolted steel floor, the top ring of the tank is built on the jack. Then the top of the water tank was erected, and the lifting ring and the top were jacked up. For each additional ring, then assemble the bolt pieces below the top ring together, and apply a specially made polyurethane sealant between the seams.



All construction works are completed on the ground to ensure a safe, fast and efficient construction environment. The storage tank is usually completed within one to two weeks. If the general salary of on-site labor is used, it can save a lot of cost for the owner.



Glass Fused-To-Steel Water Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds









About Center Enamel Co., Ltd



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.
