| Design Life: | 50years | Capacity: | 20 M3 To 18,000 M3 |
|---|---|---|---|
| Foundation: | Concrete Or Glass Fused Steel | Defect Free: | Minimum Maintenance Needed |
| Impact Resistance: | Excellent | Warranty Period: | 2 Years Free Of Charge |
| High Light: | sludge holding tanks,sewage storage tank |
||

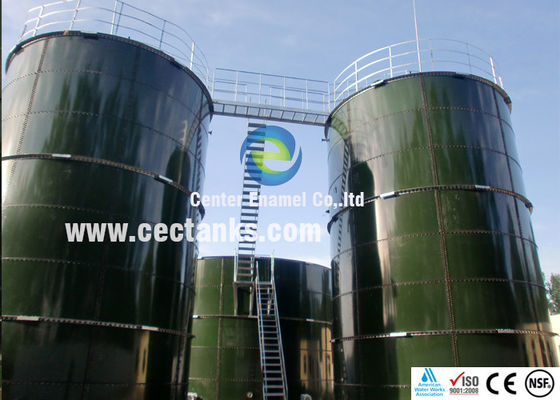

High Quality GFS / GLS Sludge Storage Tanks Complying with AWWA D103-09 Standard
Glass Fused To Steel Tanks are the leader of Water Storage Solutions, which is widely used as Sludge Storage Tanks, Waste Water Storage Tanks for Biogas Plant, Sludge Treatment Plant(STP) and Waste Water Treat Plant (WWTP) etc. With the advantage of both GLASS and STEEL, Glass Fused To Steel Tanks can resist corrosion of Waste Water of PH 1 - 14.
Center Enamel Co., Ltd., as the largest and most professional manufacturer and supplier of Glass Fused To Steel Tanks in China, have been engaged in the industries for more than 25 years, since its establishment at 1989. Center Enamel GFS tanks comply with ANSI/AWWA D103 latest version, EN ISO 28765 and NSF-61 standard, products have been exported to over 20 countries successfully.
Advantage of Center Enamel Co., Ltd
1. R & D ability:
With nearly 30 years experience in enameling industry, Center Enamel Co., Ltd has become the largest and most professional enamel tank manufacturer in China.
We already established a professional R & D team and advanced laboratory. With this strong enameling R & D ability, we can meet various demands of customers.
2. Professional R & D Team:
1 * Technical Consultant - National technical expert; Senior engineer; over 50 years enameling R&D experience
8 * Advanced Technician - Postgraduate educational background; expert in enamel R&D over 10 years
With various modern test instruments and equipment for about 100 sets
Product Specification
1. Coating Color: dark green, white, blue, color can be customized upon your request
2. Coating Thickness: 0.25 - 0.40mm, double coating
3. Acid and Alkalinity Proof : Standard Sheet PH: 3 - 11, Special Sheet PH: 1 - 14
4. Adhesion: 3450 N / cm
5. Elastic: Same as steel sheet, around 500 Kn / mm
6. Hardness: 6.0 ( Mohs )
7. Service life: more than 30 Years
8. Holiday test: > 1500V
9. Permeability: Gas / liquid impermeable
10. Easy to clean: Smooth, glossy, inert, non adhesive
11. Corrosion resistance: Excellent. Suitable for waste water treatment, sewage treatment etc.
Comparison with Other Tanks
| Item | Concrete Tank | Carbon steel tank |
Center Enamel GFS Tanks |
LIPP tank |
| Beautiful degree | Low | Low | High | High |
| Temperature adaption | A stress | Adapt to low temperature | Adapt to low temperature | Adapt to low temperature |
| Shape | Any shape | Round shape | Round shape | Round shape |
| Ground Or underground | Both | Ground | Both | Ground |
| Corrosion resistance | Normal | No resistance to corrosion | Good | Not |
| Abrasion resistance | Good | Bad | Good | Bad |
| Easy to clean | Bad | Bad | Good | Normal |
| Easy to repair | Normal | Good | Good | Bad |
| Weight (T) | heavy | Little heavy | light | Little light |
| Tank cost | middle | high | low | low |
| Tank temperature protect | no | need | need | need |
| Anti-corrosive Treatment | no | need | no | need |
| Annual anti-corrosive cost | no | High cost | no | High cost |
| Corrosion resistance | normal | no | superior | normal |
| Abrasion resistance | good | bad | good | bad |
| Service life | 30 | 10 | 30 | 25 |
