Product Details:
Payment & Shipping Terms:
|
| Impact Resistance: | Excellent | Warranty Period: | 2 Years Free Of Charge |
|---|---|---|---|
| Defect Free: | Minimum Maintenance Needed | Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. |
| Feature: | Eco-friendly, Durability | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
| High Light: | bio digester tank,biogas anaerobic digestion |
||

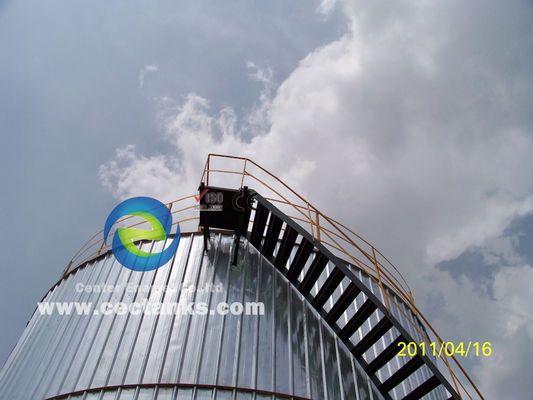

1 -4MW Biogas Power Plant EPC Turnkey BOT BTO Project Service with Glass-Fused-To-Steel Tank and Double Membrane Roof
Center Enamel Co., Ltd is the largest and most professional glass fused to steel (GFS) tank manufactory in China, with more than 20 years’ experience in producing double-sides enamel hot-rolled steel. Our factory covers an area of 90,000 square meters, 2016 total annual turnover nearly 30 million dollars, including 8 million dollars for GFS tank. Products have already been exported to more than 20 countries.
Our company has the most advanced enamel steel plate production line and the annual output is up to 100,000 pieces. We already passed ISO9001-2008 quality system certification. With the laser cutting machine, we are the only one factory have this machine in China. It is not only greatly improve our production, but also improve our quality. Our products and design reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid proof and alkali proof ) enameled sheet now. According to customers’ different operating requirements, we can customize various products.
R&D Ability
With nearly 30 years experience in enamel industry, Center Enamel Co., Ltd has become one of the most powerful company in China.
Besides, we have more than 200 enamel formulas. Our company developed a professional R&D team and laboratories. We believe with this strong development ability in enamel, we can meet various demands of customers.
Professional R&D Team:
1*Technical Adviser– National technical expert; senior engineer; over 50 years frontline R&D experience
20*Advanced Technician--- Postgraduate educational background; expert in enamel R&D over 10 years
With various modern test instrument and equipment for about 100 sets
Design Criterion
| Design Code | AWWA D103 |
| Wind load | 250 KM/h |
| Freeboard | 300mm or as per request |
| Seismic Zone | D |
| Fluid Temperature | -5~ 77 Degree C. |
| PH Range | 3 - 11 |
| Specific Gravity | 1.105 |
| Edge Protection | Yes, enameled edge |
| Vacuum | -500PA( enamel roof), -200PA (membrane roof) |
| Operating temperature | Ambient |
| Operating pressure | Atmospheric |
| Bolts | galvanized bolt with PP capped |
| Bottom connection | Above ground (as per foundation drawings) |
| Tank color | As customer’s request |
Advantages of GFS tank: cost effective, quick construction, superior corrosion and abrasion resistance, more than 30 years service life, expandable
Application:
Water supply and treatment
Power and energy
Agricultural silos
Sewage treatment
Biogas/Biomass engineering
Projects reference
2008 Beijing Olympic Games Sewage Treatment--4 sets of Ø18.33×3.6M, 1 set of Ø4.82×3.6M
Malaysia Palm oil biogas plant--2 sets of Ø18.33×3.6M
Australia Melbourne Drinking Water Storage--2 sets Ø 22.17 x 6M
New Zealand Dairy Effluent Storage Tank-- 1 sets Ø 11.46 x 3.6M
Russia Municipal Wastewater Treatment---2 sets Ø 5.35 x 8.4 M
