Glass Fused Steel Tank / Bio Digester Tank Body And Membrane Roof

Glass Fused Steel Tank / Bio Digester Tank Body And Membrane Roof
Glass Fused Steel Tank / Bio Digester Tank Body And Membrane Roof

Large Image :  Glass Fused Steel Tank / Bio Digester Tank Body And Membrane Roof

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20161123003
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Adhesion: 3,450N/cm Holiday Test: >1500v
Design Life: 50years Steel Grade: ART 310
High Light:

biogas septic tank

,

biogas anaerobic digestion

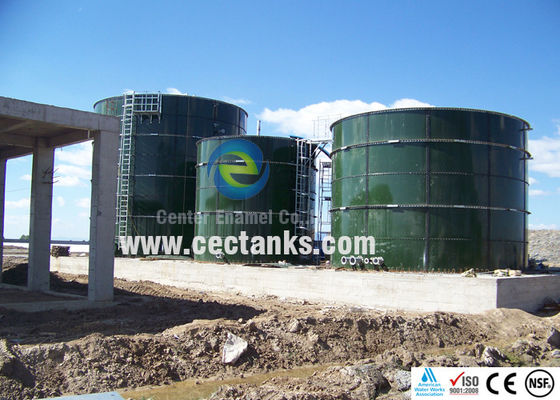

Biogas Storage Tank with Glass Fused Steel Tank Body and Membrane Roof





The biogas storage tank membranes are highly tear resistant polyester fabrics with a special PVC surface treatment and acrylate varnish. The fabric is also resistant to the impact of the different biogas ingredients and the white colour of its external membrane has a highly reflective effect. The construction and dimensions of the double membrane biogas storage tank comply with all relevant standards.

· Biogas storage system fabric is highly flame-poof according to DIN 4102-B1

· Higher specification fabric is available on request

· The special surface treatment formula guarantees high resistance against permeability & UV

· All biogas storage tanks are resistant to wind and heavy snow and guarantee safe operation

· The temperature resistance ranges from –30°C to +60°C



Its Manufacturing Process



1. CAD Design: all the leachate storage tanks are designed as per client’s request by CAD - work stations

2. Laser Cutting: Center Enamel adopts most advanced 3500W laser cutting machine to meet the best cutting performance

3. Shot Blasting: Comparing chemical processing, our advanced physical Shot Blasting ensure quality of each sheet

4. Rolling: according the different request and dimension

5. Pre - treatment: Each sheet will be pre - treated before enameling

6. Enameling: Center Enamel is the only one using automatic enamel machine in China

7. Firing: The temperature of firing oven is 850 degrees Celsius

8. Test: Center Enamel tests every sheet with 1500V holidays test and other tests

9. Packing: All the glass fused to steel sheets are packed in wooden boxes



Why would you choose our biogas storage tank over any other tanks ?

  • can be designed to future expansion, dismantle or re-movement.
  • minimal maintenance cost
  • No need crane or other large equipment during erection
  • Fast in installation
  • not subjected to severe weather and environment.
  • superior performance in corrosion resistance and against rust
  • factory fabrication tank . No painting or spray on erection site .
  • Remove graffti easily
  • Customized color according to surrounding buildings
  • Over 30 years lifespan



In addition to be used as biogas storage tank ,what else applications :



agriculture irrigation water storage tank , dairy farm effluent storage tank , manure storage tank ,
Fire protection system fire water storage tank
Water supply and treatment

raw water storage tank , river/well/rain water storage tank , treated water storage tank , clear water storage tank , sedimentation tank , sea water tank ,

Waste water treatment : sedimentation tank , equalization tank , regulation tank , sludge holding tank , leachate storage tank , effluent treatment tank , aerobic reactor , anaerobic reactor , buffer hydrolysis tank , ect.

Waste water treatment sedimentation tank , equalization tank , regulation tank , sludge holding tank , leachate storage tank , effluent treatment tank , aerobic reactor , anaerobic reactor , buffer hydrolysis tank , ect.
Biogas plant various anaerobic digester and various aerobic reactor , such as SBR , CSTR , USR , EGSB , UASB , ect.
Grain silo wheat silo , corn silo , seeds silo ect.
