Waste Water Glass Fused Steel Tanks With -5~ 77 Degree Fluid Temperature
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161021001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
Product Description
Waste Water Tanks to Energy Power Using Chinese Glass Fused to Steel Tank
Center Enamel Co., Ltd is the largest and most professional glass fused to steel (GFS) tank manufactory in China, with more than 20 years’ experience in double-sides enamel hot-rolled steel.
Design Criterion
| Design Code | AWWA D103 |
| Wind load | 250 KM/h |
| Freeboard | 300mm or as per request |
| Seismic Zone | D |
| Fluid Temperature | -5~ 77 Degree C. |
| PH Range | 3 - 11 |
| Specific Gravity | 1.105 |
| Edge Protection | Yes, enameled edge |
| Vacuum | -500PA( enamel roof), -200PA (membrane roof) |
| Operating temperature | Ambient |
| Operating pressure | Atmospheric |
| Bolts | galvanized bolt with PP capped |
| Bottom connection | Above ground (as per foundation drawings) |
| Tank color | As customer’s request |
Advantages of GFS tank: cost effective, quick construction, superior corrosion and abrasion resistance, more than 30 years service life, expandable
Application

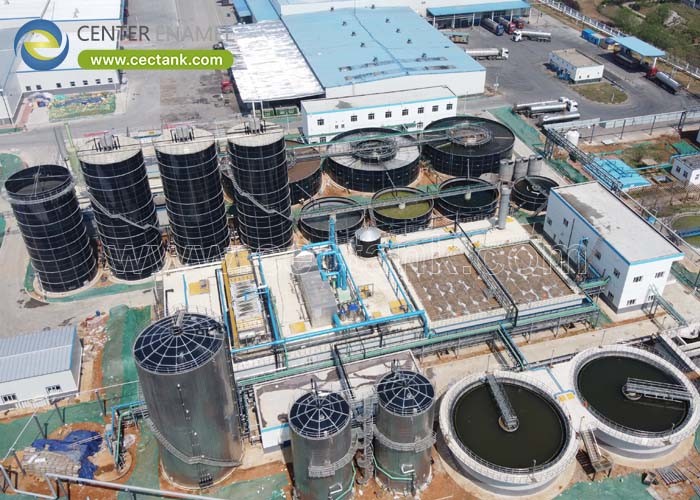

Water supply and treatment
Power and energy
Agricultural silos
Sewage treatment
Biogas/Biomass engineering
Projects reference
1. 2008 Beijing Olympic Games Sewage Treatment--4 sets of Ø18.33×3.6M, 1 set of Ø4.82×3.6M
2. Malaysia Palm oil biogas plant--2 sets of Ø18.33×3.6M
3. Australia Melbourne Drinking Water Storage--2 sets Ø 22.17 x 6M
4. New Zealand Dairy Effluent Storage Tank-- 1 sets Ø 11.46 x 3.6M
5. Russia Municipal Wastewater Treatment---2 sets Ø 5.35 x 8.4 M
