|Design Life:||50years||Tank Body Color:||Dark Green / Customized|
|Foundation:||Concrete Or Glass Fused Steel||Tank Body:||Glass Fused To Steel|
bio digester tank,
biogas septic tank
Glass Coated Steel 5000m3 Biogas Storage Tank
Both biogas and biomethane can be stored for farm-on uses. In practice, however, most biogas is used as it is produced. Thus, the need for biogas storage is usually of a temporary nature, at times when production exceeds consumption or during maintenance of digester equipment. Important considerations for on-farm storage of biogas include
1) the need volume
2) possible corrosion from H2S or water vapor that may be present, even if the gas has been partially cleaned, and

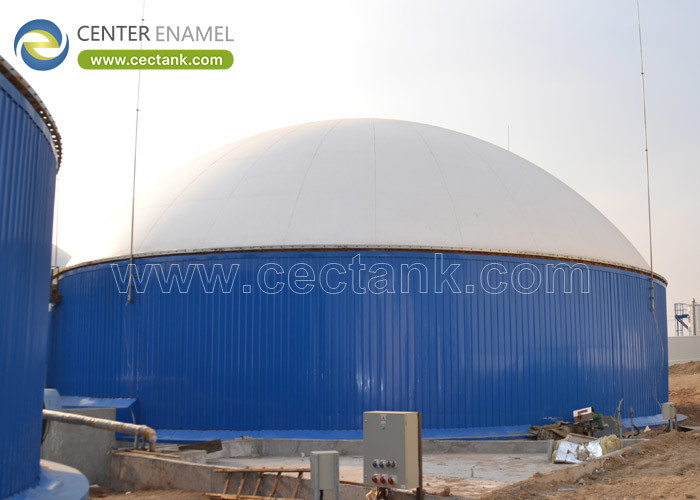

According to the practical situation of the plant, biogas storage tank can use a fixed steel roof or double membrane roof . Whereas , double membrane roof can collect more biogas . It can be used as a temporary gas holder before biogas is desulfurized and dried . Biogas contains H2S which is very corrosive , so it is very important to use corrosion resistant digester tank .
Glass fused steel tank is the glass coating fused on carbon steel plates . After fired at high temperature , the glass coating bonds with steel plates which makes two material become one . Glass fused steel plates occupies characteristic of both : high corrosion resistant of glass , and flexibility and strength of steel . Based on above characteristics, glass fused steel tank is the utmost choice for biogas digestion .
Brief introduction of Center Enamel Co. Ltd
Center Enamel Co. Ltd established as a factory producing enamel frit at the very beginning . It is a expert on enamel material production . Its enamel material is sold to many other factory to produce cookware , hot water heater , ect . Center Enamel occupies more than 200 enamel frit formulas . When it comes to making glass coated steel tank . How you good at enamelling technology is the crucial issue of the quality of glass fused steel tank . Center Enamel is very confident at enamelling . We pre-cut holes with CNC cutting machine which grantees 100% accuracy of holes ; pre-treat raw steel plates by shot blasting machine according to standard SSPC-SP 10/ NACE No. 2 Near White Blast Cleaning ; spraying and firing steel plates with automatic electrostatic spraying line .... We design and manufacture tanks according to American standard AWWA D-103/09 factory bolted coated steel tank for water storage . Above all factors is the main reason we have exported and installed thousands of tanks in China and out of China .
Here below is fundamental characteristics of enamel steel :
|Coating color||dark blue, dark green , white, and customized|
|A standard steel plate size||effective size 2400mm x 1200 m|
|Steel plates thickness||3mm - 12mm , depends on the diameter & height|
|Coating thickness||0.25mm - 0.4mm, two coating internal and external|
|Acid and alkalinity proof||standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14|
|Elastic||same as steel sheet , around 500KN/mm|
|Service life||>30 years|
|Spark test||>1500 V|
|Permeability||gas and liquid impermeable|
|Easy yo clean||smooth, glossy, inert, anti-adhesion|
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Why would you choose glass fused steel tank over any other tanks ?
can be designed to future expansion, dismantle or re-movement.
minimal maintenance cost
No need crane or other large equipment during erection
Fast in installation
not subjected to severe weather and environment.
superior performance in corrosion resistance and against rust
factory fabrication tank . No painting or spray on erection site .
Remove graffti easily
Customized color according to surrounding buildings
Over 30 years lifespan
Except for biogas storage tank , it can also be used as :
Agriculture : irrigation water storage tank , dairy farm effluent storage tank , manure storage tank ,
Fire protection system : fire water storage tank
Water supply and treatment : raw water storage tank , river/well/rain water storage tank , treated water storage tank , clear water storage tank , sedimentation tank , sea water tank ,
Waste water treatment : sedimentation tank , equalization tank , regulation tank , sludge holding tank , leachate storage tank , effluent treatment tank , aerobic reactor , anaerobic reactor , buffer hydrolysis tank , ect.
Biogas plant : various anaerobic digester , various aerobic reactor , such as SBR , CSTR , USR , EGSB , UASB , ect.
Grain silo : wheat silo , corn silo , seeds silo ect.
We are capable of providing minimum 20m3 tank , maximum 18,000 m3 open top ; if the tank is with roof , maximum capacity is :
With double membrane roof , maximum 10,000 m3
With fixed steel roof , maximum 8,000m3
With aluminum deck roof, maixum 10,000m3
With fiberglass reinforced polyester roof , maximum 10,000m3
If you want to have a standard size chart from us , contact with our sales .
