Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008

Certification
China Center Enamel Co.,Ltd certification
China Center Enamel Co.,Ltd certification
It is really a great pleasure to work with this company ,I can always get the solution timely and on budget

—— Micheal Jonson

Highly recommend this company ! I am a water and wastewater project contractor ,.I am so glad to find such a trustworthy tank supplier .

—— Martin Jäger

Good service ,very patient to help me find the best solution .I will buy more tanks from them in the near future .

—— William Koh

The GFS tank are very durable and very strong enough. The installation work are very simple and rapid for this work job. Overall, the GFS tank are highly recommend

—— HW Chua

I'm Online Chat Now

Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008

Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008
Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008 Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008

Large Image :  Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160705002
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Tank Body Color: Dark Green / Can Be Customized Capacity: 20 M3 To 18,000 M3
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
Foundation: Concrete Or Glass Fused Steel Steel Grade: ART 310
High Light:

bio digester tank

,

biogas anaerobic digestion

Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance And Low Maintenance Cost

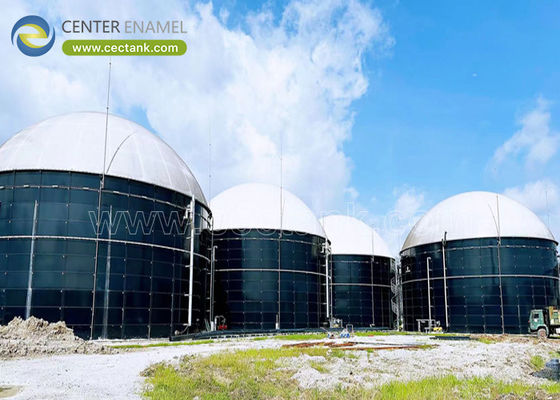

Glass fused to steel tank are utilized for pasteurising digesters, mesophilic digester and various other application and processes. In the industrial sector using anaerobic digestion to create biogas, which can improve the utilization of organic waste and turn it into treasure. Almost any organic waste can be digested, it can develop to utilize food waste, domestic waste and restaurant waste.



Glass Fused to Steel is not only utilized for the tank walls but also in the roofs on tanks such as digesters. This gives the high degree of protection of Glass-Fused-to-Steel throughout a digester, especially in the highly aggressive gaseous zone. These roofs are structurally designed to allow for local environmental loading and can also support centrally mounted mixer systems.

Additionally, Glass-Fused-to-Steel tanks can also be used for biogas storage by incorporation of double membrane covers.



Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008 0Glass Fused To Steel Biogas Storage Tank With Superior Corrosion Resistance ISO 9001:2008 1



Specification of glass fused to steel tank



1. Steel plates thickness : 3mm - 12mm , depends on the diameter & height

2. Coating thickness : 0.25mm - 0.4mm, two coating internal and external

3. Acid and alkalinity proof : standard coating suits for PH3 - PH11 , special

4. coating suits for PH1 - PH14

5. Adhesion : 3,450N/cm

6. Elastic : same as steel sheet , around 500KN/mm

7. Hardness : 6.0 Mohs

8. Service life : >30 years

9. Spark test : >1500 V

10. Permeability : gas and liquid impermeable

11. Easy yo clean : smooth , glossy , inert , anti-adhesion





Comparation between tanks



Characteristic Cement 304 S.S. FRP

Glass fused to

Steel tanks

Product color grey Metal color Any color

Green, white, blue,

any color

Coating thickness No no >300mm 0.2-0.4mm
Steel thickness >250mm >3mm >300mm 2-12 mm
Aid & alkali proof normal normal Special fiber excellent
Hardness C15-C60, HV310-370, Mohs 5.5 Barcol hardness 40 Mohs 6-7
Service life 50 years >30 years <10 years >30 years
Pressure standing ability strong normal normal strong
Installation period > 35 days >20 days >30 days 7-10 days
Installation Complex, request big professional equipment Professional people, work high above the ground, dangerous installation work high above the ground, dangerous installation, have request on weather condition Safe installation, easy, fast, do not have requests on weather condition
removal impossible Possible, but high cost impossible Possible, low cost
Out appearance normal

Ok,

but only one color

OK Good looking





Why will you select Center Enamel as a partner ?



1. Being engaged in enamel industry for about 30 years, we own more than 200 patents of enamel frit formulas,ART310 enamel special steel sheet is our patent, which can solve the fish scale problem

2. With international standard production line, and we already passed the ISO 9001-2008 quality system, and our tank comply with manufacturing standard Q/01ZT012009

3. We make structure design strictly comply with AWWA D103-09 , OSHA,EN28765 and series Australian standards

4. We have our own R&D department, senior engineer has more than 50 years’ experience in researching enamel bolted tank

5. With professional sales and after – sales service team, no matter what problem you have we could help you solving the problems at once
