Bolted Liquid Storage Tanks with porcelain enamel coating process

Bolted Liquid Storage Tanks with porcelain enamel coating process
Bolted Liquid Storage Tanks with porcelain enamel coating process Bolted Liquid Storage Tanks with porcelain enamel coating process

Large Image :  Bolted Liquid Storage Tanks with porcelain enamel coating process

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160127011
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Acid And Alkalinity Proof: Standard Sheet PH:3~11 Special Sheet PH: 1~14 Hardness: 6.0Mohs
Service Life: ≥30 Years Holiday Test: >1500v
Permeability: Gas And Liquid Impermeable Coating Color: Dark Green / Can Be Customized
High Light:

liquid fertilizer storage tanks


chemical storage tank

Steel Bolted Liquid Storage Tank With Beautiful Appearance And Long Service Life

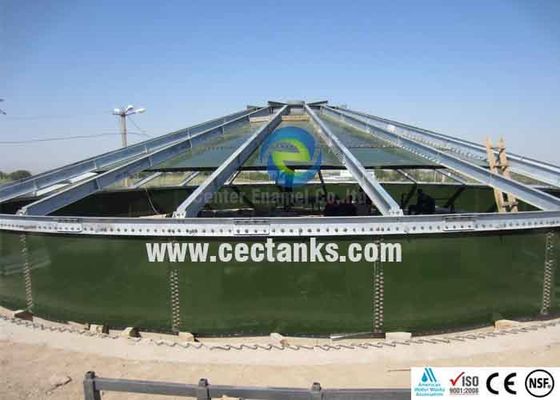

Steel bolted tank selected roofs

1. Glass fused to steel material roof ( tightness roof )

2. Double membrane roof / single membrane roof ( tightness roof )

3. Aluminum deck roof / aluminum dome roof

4. Fiberglass resistance roof


Steel sheet procedures

1. Get raw steel sheet : First measure the thickness with micrometer and see whether it matches the raw steel sheet to be used . Then mark down the batch number .

2. Punching , corner cut and edging : Before punching set all the dates as per drawing in the computer and then put steel sheet on the automatic laser cutting machine , which will cutting the holes according to the setting datas .


3. Press Arc :According to the diameter , determine the radian of the pressure plate ; clean up the pressure machine and the plate surface ; be careful do not press the steel emery onto the plate .

4. Short blasting : Before the blasting , shifting the steel emery ( steel grit) and add it to the blasting machine ; hoist the rough steel into the blasting machine.

5. Glaze Mortar Adjustment : Firstly , the ground coat glaze mortar must be shifted . Secondly , adjust the glaze mortar according to the specification .

6. Spray : Before the spray , check the plate is clean and no defects , use sandpaper to clean the surface well and then put them into the automatic spray machine , start spraying .

7. Buring : After finish spray put the steel sheet to the high temperature oven , the burning temperature between ground enamel and top enamel are different . The temperature of ground enamel is 880-900 degree and the buring time is about 8-20 minutes , while the top ground the temperature is 780-820 degree and the burning time is about 6-16 minutes

8. Production QC : chemical elements inspection ; holiday test ; Coating  thickness gauge ; Out appearance checking ; Anti-acid&alkaline test ; Anti-high temperature test ; Adhesion test ; Adhesion test

9. Package : Double checking is required before packaging, confirm the plate’s code and quality . The steel plates is separated with each other by PE foam , to avoid any damage on the coating surface . And the whole pallet steels are covered by a outer film, tied by steel belt .

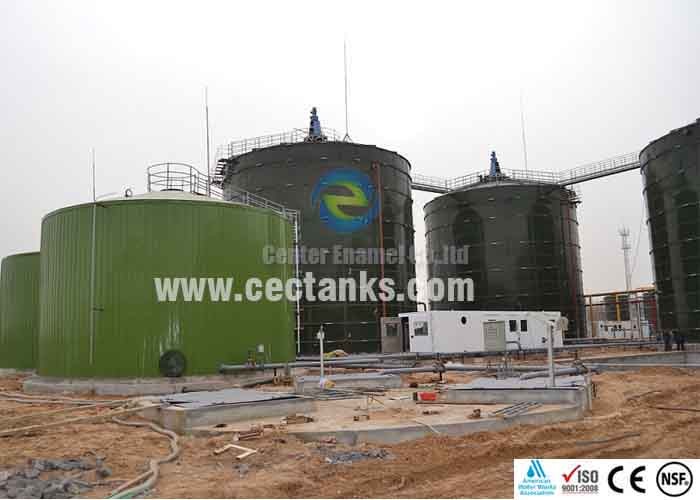

GFS liquid storage tanks

GFS liquid storage tanks can apply to water supply and treatment and wastewater treatment , such as potable water , Ro water , bitter – brackish water , fire water storage , salt water , irrigation water , animal wastes ect . Glass fused to steel tank is the double wall coating steel sheet with enamel frits , which can install in indoor , above ground , underground ect . It will be connected with special sealant ( water proof ) and high corrosion bolts , for it’s rapidly installation , great corrosion resistance and low cost of maintenance , which will be famous among tanks , because it is greatly solve the problem of traditional tanks such as long time installation , need big equipments , low corrosion resistance ect .
