Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | J2016012649 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012649 |
Service Life: | More Than 30 Years | Coating Thickness: | 0.35mm |
Coating Color: | Customized | Roof Options: | Glass Fused Steel Roof , Membrane Roof, Aluminum Deck Roof, GRP Roof |
Color Of Coating: | Dark Green, Dark Blue, Light Blue And Customized | Tank Material: | Glass Coated Steel Sheets |
Capacity: | 20 M3 To 18,000 M3 | PH Range: | 1 To 14 |
Application: | Liquid And Loose Material Storage | High Light: | anaerobic sludge digester,anaerobic digestion tanks |

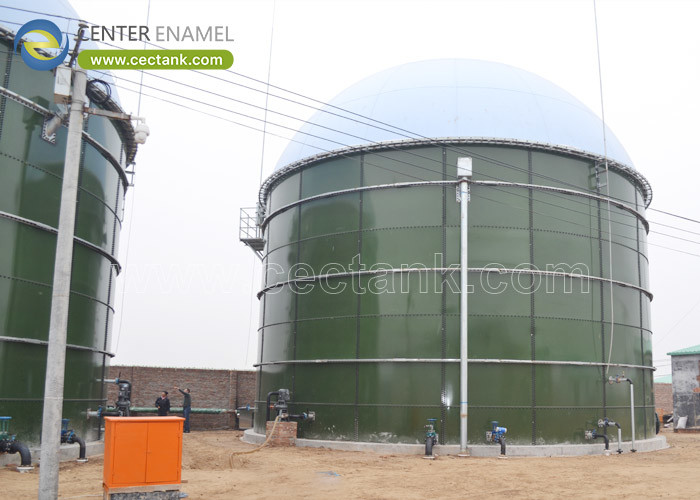

Glass Fused To Steel Ad Tank , Burned In Oven With 800 – 900 Degree Temperature
The production of glass fused to steel sheet
Enamel – coating is a traditional anti – corrosion technology . Used the technology , the steel is beautiful and glazed outside , but strong and anti – corrosion inside . Coating on the special titanium steel plate , the enameled bolted tank has been successfully applied in varieties of industries , agricultural sewage , urban sewage and other wastewater treatment systems and biogas projects .
Center Quality Control:
* Raw materials testing in the factory:ingredient analysis, impurities test ;
* Recipe finalized small samples test : enamel fluidity test, chromatic difference analysis, enamel burning experiment , acid and alkali resistance testing, glossy, adhesion etc
* Middle stage products test :amplification experiment simulated environment;
* Destructive testing, detection , impact test, sparks test, sliced electric microscope analysis .
Project reference :
We produce glass fused to steel tank since 1989 , have more than 26 years experience in this industry . We export tanks to USA , Australia , Malaysia , Singapore , Thailand , Germany ect. Countries . Until now we install more than 2000 tanks all over the world , have rich experience in project . Below is some projects reference :
-- 2008 Beijing Olympics Games wastewater project
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009 Niger Azelik uranium deposits(China National Nuclear Corporation)
-- 2009-2013 Palm oil wastewater treatment project in Indonesia
-- 2011 Anyang city Biogas project
-- Chengdu Biology waste water project
-- Brewery wastewater treatment
-- Shandong Garbage waste water treatment project
-- Pharmacy waste water treatment project
-- 2013 Sichuan Chengdu Pharmaceutical wastewater treatment
-- 2014 Urban sludge treatment project- Kazakhstan
Comparation of various tanks
Characteristic |
Cement |
304 S.S. |
FRP |
Enamel tank (Glass-fused-to- Steel tanks) |
Product color |
grey |
Metal color |
Any color |
Green, white, blue, any color |
Coating thickness |
No |
no |
>300mm |
0.2-0.4mm |
Steel thickness |
>250mm |
>3mm |
>300mm |
2-12 mm |
Aid & alkali resistance |
normal |
normal |
Special fiber |
excellent |
hardness |
C15-C60, |
HV310-370, Mohs 5.5 |
Barcol hardness 40 |
Mohs 6-7 |
Service life |
50 years |
>30 years |
<10 years |
>30 years |
Pressure standing ability |
strong |
normal |
normal |
strong |
Installation period |
> 35 days |
>20 days |
>30 days |
7-10 days |
installation |
Complex, request big professional equipment |
Professional people, work high above the ground, dangerous installation |
work high above the ground, dangerous installation, have request on weather condition |
Safe installation, easy, fast, do not have requests on weather condition |
removal |
impossible |
Possible, but high cost |
impossible |
Possible, low cost |
Out appearance |
normal |
Ok, but only one color |
OK |
Good looking |
