Product Details:
Payment & Shipping Terms:
|
| Design According To: | AWWA D 103 , OSHA | Tank Color: | Dark Green, Dark Blue, Light Blue And Customized |
|---|---|---|---|
| Tank Material: | Glass Coated Steel Sheets | Capacity Range: | 20 M3 To 18,000 M3 |
| Service Life: | More Than 30 Years | Coating Thickness: | 0.35mm |
| Coating Color: | Customized | Roof Options: | Glass Fused Steel Roof , Membrane Roof, Aluminum Deck Roof, GRP Roof |
| High Light: | anaerobic sludge digester,anaerobic digestion tanks |
||
AD tank , the design comply with AWWA D103 – 09 , OSHA standards
Our technology advantages
* Being engaged in enamel industry for over 26 years , we process more than 200 patents of enamel frit formulas , until now we install more than 2000 tanks all over the world .
* Having the “ ISO9001 – 2000 quality system certification ” , and developed an enterprise standard ZT–LA–02-026-208 for enamel bolted tank . Glass – fused – to - steel tank manufacturing standard Q/01ZT012009 and NSF ( National Sanitation Foundation ) .
* We design GFS tank according to AWWA D103-09 and OSHA standards .

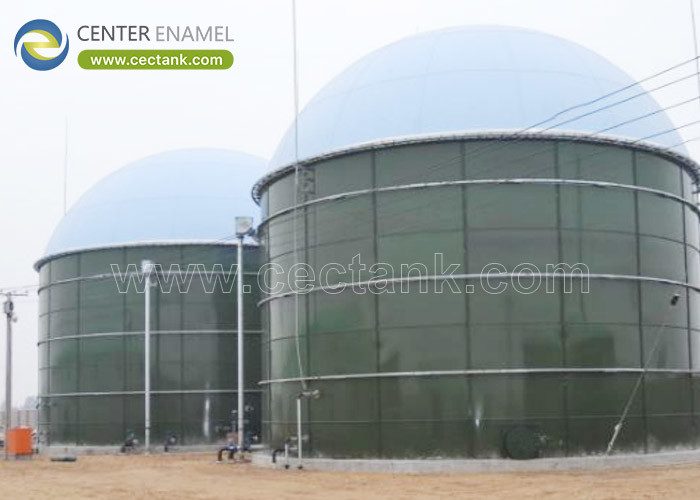

Introduction of Center GFS digester
Center enamel digester tanks are widely used in anaerobic digester , the size of our tank from 50m3 – 18,000m3 ,which can meet the specification of every individual project . The thickness of our glass fused to steel tank from 3mm-12mm at present , and the coatings can be in one coats one fired , two coats two fired , the coats three fired . In wastewater treatment and biogas projects , our enamel bolted steel tank has widely used in anaerobic and aerobic reactor of UASB , EGSB , BAF , USR , CSTR , and so on .
We are not only can supply you the glass fused to steel tank for the AD plant , but also we can supply you one or two layers roof .The double membrane roof utilize the highest strength membranes , which can resist the preasure from wind , snow , rain . The roof is supplied individually , which will mount to the top of the tank to store biogas .
Specification of glass fused to steel tank
|
Coating Color |
Dark green , white , blue ,color can be customized |
|
Coating Thickness |
0.25mm - 0.40mm,double coating |
|
Acid and Alkali proof |
Standard sheet PH: 3-11 |
|
Adhesion |
3450N/CM |
|
Elastic |
Same as steel sheet , around 500 KN/MM |
|
Hardness |
6.0(Mohs) |
|
Service Life |
More than30 year |
|
Holiday Test |
More tank 1500V |
|
Permeability |
Gas/Liquid impermeable |
|
Easy to clean |
Smooth , glossy , inert , non adhesive |
|
Corrosion resistance |
Excellent , suitable for wastewater , salt water , sea water , high-sulfur crude oil , salt fox , organic and inorganic compounds |
Project reference:
1- 2008 Beijing Olympics games waste water project , Ø18.33 * 3.6M * 4 sets
2- 2009 Niger potable water project , Ø 19.86 * 4.8M * 2 M * 2 sets
3- 2 Waste water project in China , total 7 sets of tank , Ø 15.28 * 6M * 2sets , Ø 15.28 * 4.8M*3sets , Ø15.28 * 36.M * 2 sets
4- 2009 Niger Azelik uranium deposits ( China National Nuclear Corporation )
5- 2009 Niger Azelik uranium deposits ( China National Nuclear Corporation )
6- 2009-2013 Palm oil wastewater treatment project in Indonesia
