Enamel Coated UASB Anaerobic Sludge Digester Tank , Anaerobic Generator

Enamel Coated UASB Anaerobic Sludge Digester Tank , Anaerobic Generator
Enamel Coated UASB Anaerobic Sludge Digester Tank , Anaerobic Generator Enamel Coated UASB Anaerobic Sludge Digester Tank , Anaerobic Generator

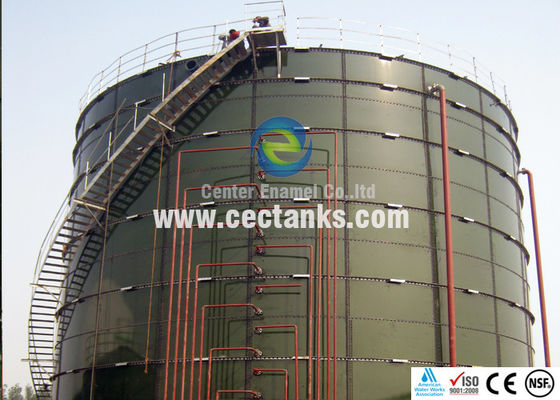

Large Image :  Enamel Coated UASB Anaerobic Sludge Digester Tank , Anaerobic Generator

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012633
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Lifespan: More Than 30 Years Coating Thickness: 0.35 Mm
Coating Color: Customized Roof Type: Glass Steel Roof, Membrane Roof, Aluminum Roof, GRP Roof
Design According To: AWWA D 103 , OSHA Tank Color: Dark Green, Dark Blue, Light Blue And Customized
Tank Material: Glass Coated Steel Sheets Capacity Range: 20 M3 To 18,000 M3
High Light:

anaerobic sludge digester

,

anaerobic digestion tanks

 Enamel Coated UASB Anaerobic Sludge Digester Tank





What is UASB reaction ?



UASB process is adaptable for much different sewage,and the structure , operation and management are simple , the cost is low and the technology is matured . The UASB reactor is widely used in anaerobic digester .



After flowed into the UASB reactor from the bottom , the sewage upflowed through the sludge bed which is the containing much granular sludge or flocculation sludge , and the anaerobic reaction occurred when the sewage meeting with the sludge . and then the biogas generated . At the same time the internal sewage is agitated and continues the circulation . The three – phase separator at the top reactor will help to separate the gas , the liquid and the solid . After the anaerobic reaction , 80% - 90% of organic waste was decomposed .



What is the process of the anaerobic digester ?



Anaerobic digester (AD) , the first step is the decomposition of plant , animal or other matters , in this process it breaks down the organic material by the micro- organisms in the absence of oxygen .



The second step , after the organic material was break  down ,  the usable-sized molecules will cover the decomposed matters to organic acids .



At the end , the acid are converted to methane gas



Anaerobic digester produces biogas , a methane-rich gas that can be used as a fuel, and digestate , a source of nutrients that can be used as a fertilizer . Increasingly AD is being used to make the most of our waste by turning it into renewable energy .

AD benefits many different groups ; including the local community , industry , farmers and energy entrepreneurs , government and the environment .



Glass fused steel tank specifications



Steel plates thickness : 3mm - 12mm , depends on the diameter & height

Coating thickness : 0.25mm - 0.4mm , two coating internal and external

Coating color : dark blue , dark green , white, and customized

A standard steel plate size : effective size 2400 mm x 1200 mm

Acid and alkalinity proof : standard coating suits for PH3 - PH11 , special coating suits for PH1 - PH14

Service life : more than 30 years

Holiday test : 1500V

Permeability : gas liquid impermeability

Easy to clean : Smooth , glossy , inert , anti – adhension





Application of GFS tank



Power and Energy

Water supply and Treatment

Wastewater Treatment

Industrial dry bulk storage

Bio gas biomass

Potable water

Buffer Pool

Mineral

Aviation oil

Bitter-brackish water

Aerobic Reactor

Wood product

Process water

Raw water/Fresh water

Biological Filter

Stone/Clay/Glass

Boiler Feed water

Aeration

Effluent Treatment

Chemicals

Fuel Oil

Biological Filter

Regulating Tank

Petrochemicals

Kerosene

Water Purifying

Anaerobic reactor

Foods

DI water

Fire-fighting water

Leachate Storage

Plasthetics

Coal Storage

Saline Water/Brine Water

Irrigation water

Grain / Seeds

Diesel

Sedimention Container

Water Purifying



Drilling mud

Ro Water

Sedimentation Container



Reverse osmosis water

Sea water desalinization

Sludge Tank



Fly ash silo

Lime Silo

Animal Wastes





Clarification Pool
