100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion

100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion
100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion 100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion

Large Image :  100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012626
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Color: Customized Tank Body Material: Glass Fused Steel
Roof Meterial: Membrane Volume Range: From 20 M3 To 18,000 M3
Lifespan: More Than 30 Years Coating Thickness: 0.35 Mm
Coating Color: Customized Roof Type: Glass Steel Roof, Membrane Roof, Aluminum Roof, GRP Roof
Design According To: AWWA D 103 , OSHA
High Light:

biogas septic tank

,

biogas anaerobic digestion

Anti - Acid And Anti - Alkali Biogas Storage Tanks Adapt To Low Tempreature





Biogas is one of the most attractive sources of renewable energy :



- It mitigates the growing problem of waste disposal.

- It is cost competitive without subsidies , and produces energy which can be used locally or fed into the electricity grid.


Glass fused to steel tank improveS the reliability and efficiency of biogas plants. Their performance has already been demonstrated , making them the material of choice for biogas processing. In Europe , USA and many other countries , enamel bolted tanks already have more than 100 years’ history , they are commonly used for various kinds of waste water treatment , petroleum , grains , dry bulk storage.





Glass fused to steel has many advantages in this application including :



1. Lower construction costs : a typical tank can be fully installed within 7 - 10 days.

2. Minimal logistics : making it possible to construct a biogas plant in almost any area.

3. Minimal marintainance : as no need for repairs thanks to the corrosion resistance of stainless steel.

4. Gas and water impermeable : joints are easy to keep watertight ; holes are easy to drill ;

and gas leakage is prevented.

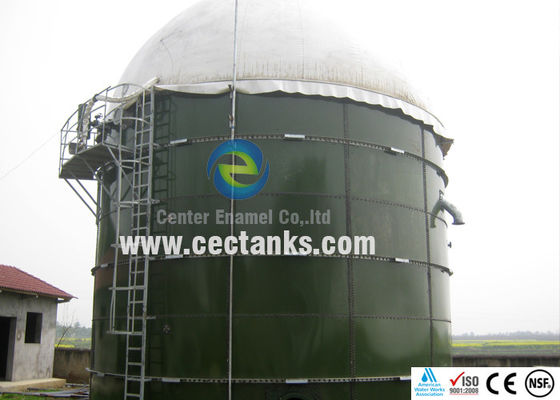

100000 / 100K Gallon Biogas Storage Tank , Low Temperature Anaerobic Digestion 0



Summary specification and application of our enamel coating steel tanks



Category

Specification

Coating Color

dark green , white , blue , color can be customized upon your request

Coating Thickness

0.25 - 0.40mm , double coating

Acid and alkalinity proof

Standard sheet  PH : 3 ~ 11

Special sheet  PH : 1 ~ 14

Adhesion

3,450 N / cm

Elastic

Same as steel sheet , around 500 Kn / mm

Hardness

6.0 ( Mohs )

Service life

≥ 30Years

Holiday test

> 1500v

Permeability

Gas / liquid impermeable

Easy to clean

Smooth , glossy , inert , non adhesive

Corrosion resistance

Excellent.

suitable for waste water treatment , sewage treatment ,

effluent treatment , salt water ,sea water , high-sulfur crude oil , salt fox ,

 organic and inorganic compounds
