Product Details:
Payment & Shipping Terms:
|
| Design Standard: | AWWA D 103 , OSHA | Color: | Customized |
|---|---|---|---|
| Tank Body Material: | Glass Fused Steel | Roof Meterial: | Membrane |
| Volume Range: | From 20 M3 To 18,000 M3 | Lifespan: | More Than 30 Years |
| Coating Thickness: | 0.35 Mm | Coating Color: | Customized |
| Roof Type: | Glass Steel Roof, Membrane Roof, Aluminum Roof, GRP Roof | ||
| High Light: | bio digester tank,biogas septic tank |
||

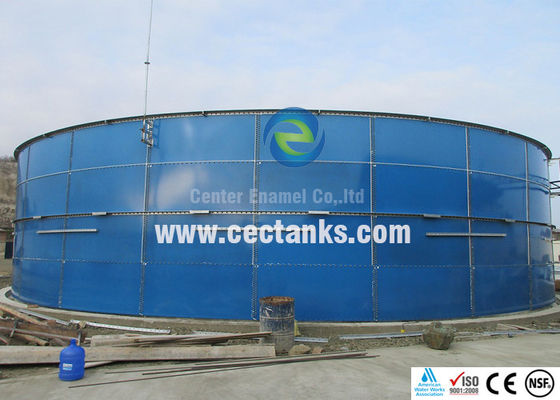

Enamel Steel Biogas Storage Tanks With Strong Corrosion / Abrasioin Resistance
Our enamel steel bloted biogas storage tanks assembeled with special high-grade bolts and sealed by constantly flexible silicone ( sealant ). The connecting material and shell accessories are equipped by the surface treatment. Verified life time of glass fused to steel tanks is more than 40 years and have high abrasion resistance and chemical resistance ( pH 2 -13 ) standard. GLS tanks are used for high variability of construction tank design ( diameter , height , piping connection ) and placing of technical equipment ( pumps , agitators , heating ).
The enamel coating steel tanks are consist of :
1. Enamel coating steel sheet. We possesses advanced enameling technology and more than 20 years experience. Steels show good chemical and physical performance because it contains titanium. Furthermore , the superfine glass foam - like structure of the enameling layer , enable the materials’ excellent flexibility and durability.
2. Special sealant.
3. Self - locking bolts.
The specifications
|
Category |
Specification |
|
Coating Color |
dark green , white , blue , color can be customized upon your request |
|
Coating Thickness |
0.25 - 0.40mm , double coating |
|
Acid and alkalinity proof |
Standard sheet PH : 3 ～ 11 |
|
Special sheet PH : 1 ～ 14 |
|
|
Adhesion |
3,450 N / cm |
|
Elastic |
Same as steel sheet , around 500 Kn / mm |
|
Hardness |
6.0 ( Mohs ) |
|
Service life |
≥ 30Years |
|
Holiday test |
> 1500v |
|
Permeability |
Gas / liquid impermeable |
|
Easy to clean |
Smooth , glossy , inert , non adhesive |
|
Corrosion resistance |
Excellent. suitable for waste water treatment , sewage treatment , effluent treatment , salt water ,sea water , high-sulfur crude oil , salt fox , organic and inorganic compounds |
Advantages
1. A high resistance to aggressive materials and corrosive liquids. The tanks are resistant to acid and alkali.
2. Highly resistant to atmospheric corrosion and UV light. Ihe glass fused to steel tanks can be used for liquid or gas whose PH is from 3 to 11.
3. High durability and extended life usage. The service life of the industrial effluent tanks is more then 30 years.
4. Easy maintenance and cleaning. The surface of the bolted steel tanks is smooth , gloosy , inert and non adhesive , making it's very easy to maintain and clean.
5. Operational duty time considerably reduced.
6. Short manufacturing times. The glass lined industrial effluent tanks are bolted from modular enmel cotaing steel plate , special sealant and self-locking bolts. It can be produced fast and installed quickly.
7. Expandable and the ability to relocate. Modular bolting system allows remodel and relocate.
8. High efficiency and equivalent value.
9. Minimal maintenance expense.
Standards Complied :
Our company has the most advanced production line, and already passed ISO9001 - 2000
quality system certification , and product and design can reach AWWA D103 - 09 standard ,
OSHA and meet European standards. We are the only enterprise that can produce AA grade (
acid - proof and alkali - proof ) enameled sheet now. According to customers’ different
operating requirements , we can customize various colors and products.
