Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon

Certification
China Shijiazhuang Zhengzhong Technology Co., Ltd certification
China Shijiazhuang Zhengzhong Technology Co., Ltd certification
It is really a great pleasure to work with this company ,I can always get the solution timely and on budget

—— Micheal Jonson

Highly recommend this company ! I am a water and wastewater project contractor ,.I am so glad to find such a trustworthy tank supplier .

—— Martin Jäger

Good service ,very patient to help me find the best solution .I will buy more tanks from them in the near future .

—— William Koh

The GFS tank are very durable and very strong enough. The installation work are very simple and rapid for this work job. Overall, the GFS tank are highly recommend

—— HW Chua

I'm Online Chat Now

Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon

Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon
Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon

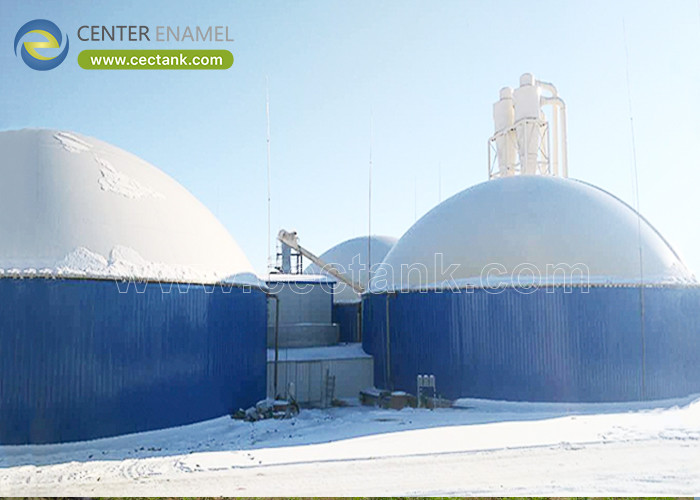

Large Image :  Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012624
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Coating Color: Customized Design Standard: AWWA D 103 , OSHA
Color: Customized Tank Body Material: Glass Fused Steel
Roof Meterial: Membrane Volume Range: From 20 M3 To 18,000 M3
Lifespan: More Than 30 Years Coating Thickness: 0.35 Mm
High Light:

bio digester tank

,

biogas anaerobic digestion

Liquid / Gas Impermeable Biogas Storage Tanks For Biogas Digester





Our biogas storage tank is composed of glass lind to steel plate , special sealant , self-locking bolts and double membrane roof offering volume from 20m³ to 18000m³. Our glass lined to steel is mainly applied to large scale farmland biogas digester , industrial effluent treatment, municipal sewage and wastewater treatment.





Our glass lined to steel biogas storage tank has below features



1. Easy and quick to be built

The construction of our glass lined to steel tank is : enamel coating steel sheet , special sealant , self-locking bolt , which is exempt from the difficult airtight craft.So the technical difficulty is greatly decreased , and the construction period is greatly shortened. To build a glass fused to steel tank , the constructers are only required to master how to assemble and disassemble the steel mould.

2. Easy to maintain

The glass fused to steel tanks are with excellent performance of anti leaking , anti abrasion , anti corrosion. And the color won't fade even after 30 years. It can be used in the harsh environment.

3. Durable

The glass lined steel bolted tanks can last over 30 years.

4. Excellent safety feature

The glass fused to steel tank is antistatic. And as contains titanium , our steel is twice harder then traditional steel plate

5. Low cost

The steel bolted tanks are easy to be transported , built , maintained and repaired. So the total cost is much lower when compaire to other traditional tanks.



Comparison with other tanks



Characteristic

Stainless steel

Carbon steel

FRP

Cement

Rubber / resin

Glass fused

to steel

Abrasion resistance

Normal

Normal

Bad

Good

Bad

Good

Corrosion resistance

Good

Bad

Normal

Bad

Normal

Good

Impact resistance

Good

Good

Normal

Good

Good

Normal

Insulation

Bad

Bad

Good

Good

Good

Good

Easy to clean

Good

Normal

Very bad

Very bad

Very bad

Good

Heating

Allowed

Allowed

Not allowed

Not allowed

Not allowed

Allowed

Antistatic  Property

Bad

Bad

Good

Good

Good

Good







Application fields introduction



1. Water supply and Treatment : Potable water , Bitter-brackish water ,  Raw water / Fresh water, Aeration , Biological Filter , Water Purifying , Fire-fighting water , Saline Water / Brine Water , Ro Water , Sea water desalinization , Lime Silo , Clarification Pool.



2. Wastewater Treatment : Buffer Pool , Aerobic Reacto , Biological Filter , Effluent Treatment , Regulating Tank , Anaerobic reactor , Leachate Storage , Irrigation water , Water Purifying , Sedimentation Container , Sludge Tank , Animal Wastes



3. Power and Energy : Biogas biomass , Aviation oil , Process water , Boiler Feed water , Fuel Oil , Kerosene , DI water , Coal Storage, Diesel , Drilling mud , Reverse osmosis water , Fly ash silo



4. Industrial dry bulk storage :  Mineral , Wood product , Stone / Clay / Glass , Chemicals , Petrochemicals , Foods , Plasthetics , Grain  / Seeds.



Glass Fused To Steel Water Tanks For Biogas Digester 10000 / 10k Gallon 0
