Product Details:
Payment & Shipping Terms:
|
| Coating Color: | Customized | Design Standard: | AWWA D 103 , OSHA |
|---|---|---|---|
| Color: | Customized | Tank Body Material: | Glass Fused Steel |
| Roof Meterial: | Membrane | Volume Range: | From 20 M3 To 18,000 M3 |
| Lifespan: | More Than 30 Years | Coating Thickness: | 0.35 Mm |
| High Light: | bio digester tank,biogas anaerobic digestion |
||

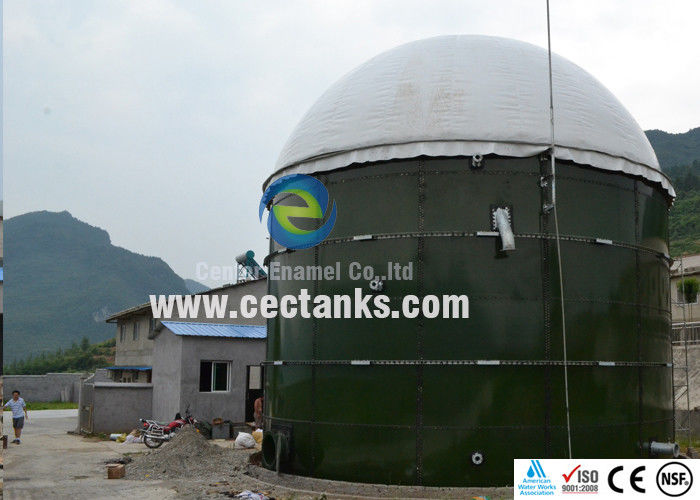

Fast Installed Biogas Storage Tanks With Low Project Cost
Our biogas storage tanks are made from enamle coating steel sheet. The steel plate is coated with 2 layers of enamel to make the steel not only with high performance in anti-corrossion , anti - arbasion , but also with the hardness of the steel.
It's also called glass fuesed to steel tanks , enamel coating steel tanks , steel bolted tanks and so on. Our glass fused to steel tank is mainly used in blow filds :
1. Water supply and waste water Treatment :
The nature of impermeable of gas and liquid makes the glass fused to steel tank suitable for water supply and treatment , such as portable water , waste water treatment , sewage treatment , RO water and so on.
2. Power and Energy
The glass fused to steel tank can be used in the most extreme conditions makes it suitable for power and energy industry, such as Biogas biomass , Aviation oil , Process water, Boiler Feedwater , Fuel Oil , Kerosene , DI water, Coal Storage , Diesel , Drilling mud , Reverse osmosis water, Fly ash silo.
3. Industrial dry bulk storage
With long-life span and low maintain cost , it can be suitable for storage such as Mineral , Wood product , Stone / Clay / Glass, Chemicals , Petrochemicals , Foods , Plasthetics , Grain / Seeds for a long time.
Our enamle steel bolted tanks are the perfect choice for the biogas storage , Anaerobic Digestion as the low project cost :
1. Low cost of transportation :as the tank is much lighter then traditional tanks , the cost of transportation for the shipment is lower then traditional tanks.
2. Low cost of installation : No big installation equipment is required , and it is very to install only taking about 10 days.
3. Low cost of maintainance : No need often checking and repair as the high performance of the resistance to harsh environment and igorous weather.
4. Low cost of renewal : Our GFS tanks offer more then 30 years service life. Once investment, no need to renew or finding replacement in a very long time.
Other property of our glass lined steel tanks / biogas digester tanks
Acid and alkalinity proof : Standard sheet PH : 3～11; Special sheet PH : 1～14. With this nature , it can be used for industrial effluent treatment , sewage treatment.
Adhesion : 3450 N / cm
Elastic : Same as steel sheet ,around 500 Kn / mm
Hardness : 6.0 ( Mohs ). We use special steel to make the hardness twice then other steel.
Coating Color : dark green , white , blue , color can be customized upon your request. Moreover , the color won’t fade even after 30 years.
Coating Thickness : 0.25 ～ 0.40mm ,double coating. That makes the tanks with strong corrosion resistance.
Service life : more then 30 Years , but with low life-time cost.
Holiday test : > 1500v
Permeability : Gas / liquid impermeable. It’s very suitable for waste water treatment , biogas digester.
Easy to clean : The Smooth , glossy , inert , non adhesive.Suitable for portable water.
Corrosion resistance : Excellent. suitable for waste water treatment , sewage treatment , effluent treatment ,salt water ,sea water ,high - sulfur crude oil ,salt fox ,organic and inorganic compounds.
Reference drawings
