Sludge holding tank , 10000 gallon steel water tank sludge anaerobic digestion

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012607
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012607
Installation: By Jacking Machine Or Steel Pole, Fast In Installation Impact Resistance: Excellent
Defect Free: Minimum Maintenance Needed Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals
Standard: AWWA D 103 , OSHA Warranty Period: 2 Years Free Of Charge
Capacity: Customized, 20 M3 To 18,000 M3 Lifespan: Over 30 Years
High Light:

sludge holding tanks

,

sludge digester tank

Product Description

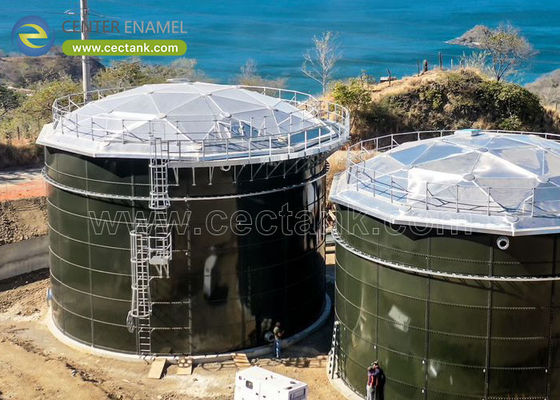

Expandable Sludge Holding Tank In Customized Color And Capacity For Effluent Treatment



Expandable sludge holding tank in customized colr and capacity is made of glass fused steel panels - glass fused steel tank .  It is named in different way, depending on the region where they are installed . “ Glass - fused - to - steel tank “ , “ GFS tank “ , “ glass lined steel tank “ , “ GLS tank “, “ glass coated steel tank ”, “ enamel coated steel tank “ , “ assembled enameled steel tank “  ect.  All these names all mean the same thing , that the tank panels are fused internal and external with  enamel frit that binds to the Ti-rich steel plates .  The combination of “ glass “ and “ steel “ provides many advantages over standard epoxy coated steel tank or welded steel painted tanks or concrete tank .





Application of glass fused steel tank





Process Water

Glass fused to steel tanks offer a anti-leaking of liquid and gas, and also a anti-rust nature, which is seem as a concern as durability. Among all of the tanks, only glass fused to steel tanks can reach this requirement.



Potable Water

Glass fused to steel tanks is the top choice in rural water potable water tanks and quickly becoming the choice for urban water applications as well with capacities from 20m3 to 18000m3..



Bio-Energy / Anaerobic Digesters

With over 30 years of experience and field-tested results, tanks with glass-fused-to-steel coatings have proven that they can provide the desired characteristics of stainless but at a lower cost.



Wastewater / Industrial effluent

When durability and total life cycle cost are the driving factors in wastewater tank selection, enamel coated tanks are the choice from clarifiers and SBRs to aeration and leveling tanks.



Leachate

Glass fused to steel tanks can withstand the rigorous environment of landfill leachate storage applications at a fraction of the cost of stainless steel.





Characteristics of glass fused steel tank



Coating color

dark blue, dark green , white, and customized

Easy yo clean

smooth, glossy, inert, anti-adhesion

Corrosion resistance

excellent ! Suitable for waste water salt water, sea water,

 high sulfur crude oil, salt fox, organic and inorganic compounds



Adhesion

3,450N/cm

Elastic

same as steel sheet , around 500KN/mm

Hardness

6.0 Mohs

A standard steel plate size

effective size 2400mm x 1200 m

Steel plates thickness

3mm - 12mm , depends on the diameter & height

Service life

>30 years

Spark test

>1500 V

Permeability

gas and liquid impermeable

Coating thickness

0.25mm - 0.4mm, two coating internal and external

Acid and alkalinity proof

standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14

Easy yo clean

smooth, glossy, inert, anti-adhesion
