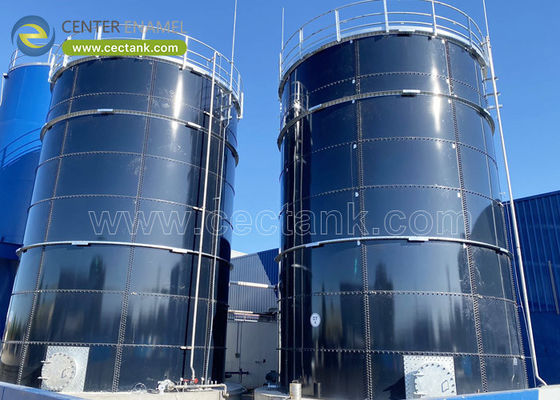

Glass Fused To Steel Water Tanks

Small And Large Scale Glass Steel Storage Bins For Water Plant Process

Process water tanks take advantage of the inert properties of the Glass-Fused-to-Steel finish and the fact that it does not require re-coating, giving process designers the re-assurance they require for these critical applications.

With existing certification for drinking water storage to NSF 61 ,  Our glass fused steel tanks  are proven to be ideal for process water applications.

Glass fused steel tank advantages

•   No need crane or other large equipment during erection. Since glass fused steel tank is bolted type tank . So no need for crane to hang the tanks and located it. Workers just assemble steel  plates and bolted them piece by piece
•  free service for technical drawings . Once a order deal, all drawings, pictures, technical documents are provided to customer free of charge .
•  not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like desert and extremely cold places.
•  superior performance in corrosion resistance and against rust : glass fused steel tank is combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body
•  factory fabrication tank . No painting or spray on erection site . The process of glass coating is finished in factory, so there is no spray works to be done on job site . Glass fused steel tank is a kind of factory pre-fabricated tank
•  minimal maintenance cost : once it is erected, there is minimal maintenance requirement needed.
•   superior performance in corrosion resistance and against rust : glass fused steel tank is combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body
•  can be designed to future expansion, dismantle or re-movement. If it is specified before the tank manufacturing that a future expansion is needed, engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another rings
•  turn key service from proposal to tank commissioning . Our team provides proposals according to customer’s tender file or FRQ , shipment of material, tank erection , water proof treatment and commissioning.

 Glass fused steel tank specifications

• Coating color : dark blue, dark green , white, and customized
• A standard steel plate size : effective size 2400mm x 1200 m
• Spark test : >1500 V
• Permeability: gas and liquid impermeable
• Steel plates thickness : 3mm - 12mm , depends on the diameter & height
• Coating thickness : 0.25mm - 0.4mm, two coating internal and external
• Acid and alkalinity proof : standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
• Adhesion : 3,450N/cm
• Corrosion resistance : excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
• Elastic : same as steel sheet , around 500KN/mm
• Hardness : 6.0 Mohs
• Service life : >30 years
• Easy yo clean : smooth, glossy, inert, anti-adhesion

Applications
