Biogas Storage Tanks for Zoo BIOGAS PLANT
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20171016013 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20171016013 |
| Coating Thickness: | 0.25mm~0.40mm & Double Coating | Capacity: | 20 M3 To 18,000 M3 |
| Foundation: | Concrete Or Glass Fused Steel | Size Of Panel: | 2.4M * 1.2M |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Feature: | Eco-friendly, Durability |
Product Description

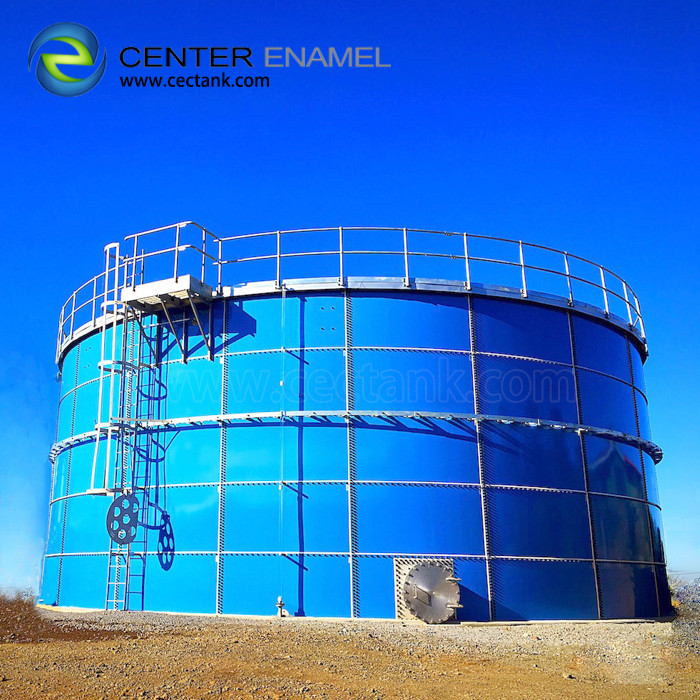

Biogas Storage Tanks for Zoo BIOGAS PLANT
The biogas produced by the anaerobic digestion plant is composed of combustible gas methane (50-75%), carbon dioxide (25-50%), water (H2O), nitrogen (N2), oxygen (O2), hydrogen sulfide (H2S), ammonia ( NH3) and trace elements (organohalides, siloxanes, etc.). H2S, CO2 and water make biogas very corrosive.
With Genzon Tech Tanks, you can actually build quality tanks while saving money. This is the only patented option that shapes and protects your tank in one step. Finishing and insulation are built in, no liner or cladding is required. Our patented concrete forming system can be assembled quickly without specialized labor or heavy equipment. Usually no crane or steel formwork is required.
Durable
In anaerobic digestion systems, cracks and leaks are more than a nuisance—they represent lost profits. With Genzon's tanks, you don't need to worry about corrosion, cracks and subsequent maintenance. Don't expect downtime. Enamel modular tanks prevent corrosion, cracks and leaks. It extends the life of concrete and virtually eliminates the need for regular maintenance.
Glass Fused to Steel Biogas Tank Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
