Payment & Shipping Terms:
|Permeability:||As And Liquid Impermeable||Acid And Alkalinity Proof:||Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14|
|Usage:||Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.||Corrosion Resistance:||Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds|
|Service Life:||More Than 30 Years||Spark Test:||>1500 V|
|Service Life:||Over 30 Years||Capactiy Available:||20 M3 To 18,000 M3|
Bolted Glass Fused Steel Tanks,
3450 N/Cm Glass Fused Steel Tanks
3450N/Cm Adhesive 1500V Bolted Glass Fused To Steel Tanks
Bolted Glass Fused To Steel Tanks are made of a special steel plates, special sealant, self-locking bolt, and the service life more than 30 years. After pretreatment, the special steel plate is coated with two or three layers of enamel coating on both side. After the heat polymerization, a strong binding force is formed between the coating and the steel plate. The protective layer formed by the coating can not only prevent corrosion of the tank body, but also has the function of strong acid and alkali resistance and strong abrasion resistance.
We use the titanium alloy special steel plate as an enamel steel plate, which is twice as strong as ordinary steel plate, the commonly used steel plate thickness from 3mm to 12mm.
The inner and outer sides of the steel plate are sprayed with ground glaze and surface glaze. after heat treatment at 850-940℃ , the steel plate surface will form a 0.3mm thick enamel coating, which will not only prevent the corrosion of the steel plate, but also has the function of strong acid, strong alkali resistance. And the self-locking bolt installation is very easy to install, no need for big installation equipment and/or very skilled laborers.
Bolted Glass Fused To Steel Tanks Specifications
|Coating color||dark blue, dark green, white, and customized|
|A standard steel plate size||effective size 2400mm x 1200 m|
|Steel plates thickness||3mm - 12mm, depends on the diameter & height|
|Coating thickness||0.25mm - 0.4mm, two coatings internal and external|
|Acid and alkalinity proof||standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14|
|Elastic||same as steel sheet, around 500KN/mm|
|Service life||>30 years|
|Spark test||>1500 V|
|Permeability||gas and liquid impermeable|
|Easy yo clean||smooth, glossy, inert, anti-adhesion|
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds

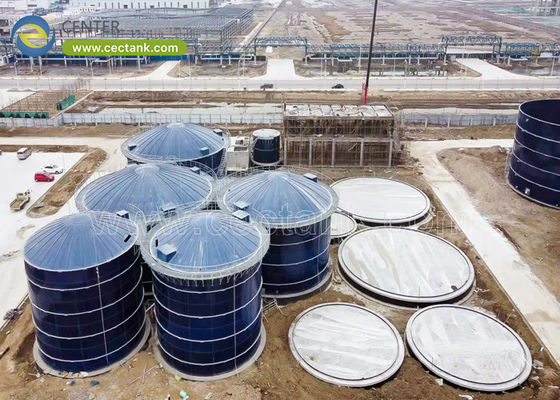

Center Enamel Bolted Glass Fused To Steel Tanks are the excellent option for wastewater treatment. They are widely used as drinking water tanks, industrial wastewater storage tank, anaerobic digester, leachate storage tank , agricultural water Storage tank, fire water tank, dry bulk storage tank , municipal sewage. And till now Center Enamel Bolted Glass Fused To Steel Tanks are already exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc., and products enjoy worldwide recognition due to superior quality and prompt service.
Contact Person: Miss.Melody wong
Acid and alkalinity proof: standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Usage: waste water treatment , sewage treatment, effluent treatment, ect.
Corrosion resistance: excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Spark test: >1500 V
