Liquid Impermeable Glass Fused Steel Tanks / Glass Lined Water Storage Tanks

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012652
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012652
Coating Color: Can Be Customized Coating Thickness: 0.25mm~0.40mm & Double Coating
Adhesion: 3,450N/cm Elastic: Same As Steel Sheet ,around 500KN /mm
Acid And Alkalinity Proof: Standard Sheet PH:3~11 Special Sheet PH: 1~14 Service Life: ≥30 Years
Permeability: Gas And Liquid Impermeable Material: Glass And Steel
High Light:

Liquid Glass Fused Steel Tanks

,

Gas Glass Fused Steel Tanks

,

Glass Lined Water Storage Tanks

Product Description

30 Years Service Life Glass Fused Steel to Tanks And Glass Lined Water Storage Tanks

After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond,During this period, the interaction between the glass and steel accelerates, an interfacial adhesion layer is formed and synthesis of the two materials takes place. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment, etc. applications





For The Following Reasons:

30-year design life

lowest maintenance requirements over tank life

lowest total life cycle cost

fast-tracked construction

expandable

specific tank designs, options and accessories to meet customer needs

glass coatings do not require periodic repainting

graffiti can usually be removed in a matter of minutes





Glass Fused Steel to Tanks Specifications

Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds







Glass Fused Steel to Tanks Applications



Center Enamel Glass-Fused-To-Steel storage tanks and are ideal for the following applications:

Potable water storage

Industrial liquids storage

BioEnergy/digesters storage

Wastewater storage

Landfill leachate storage



Glass Fused Steel to Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

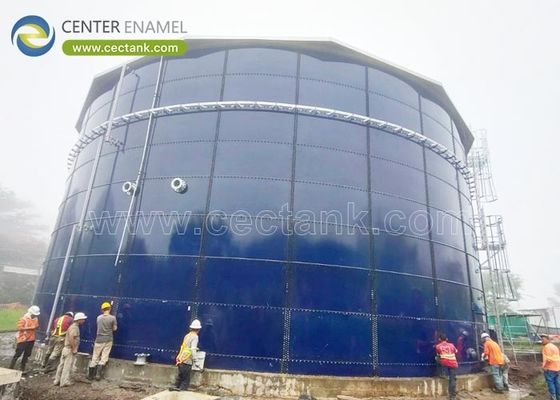

Glass Fused Steel to Tanks Projects



Liquid Impermeable Glass Fused Steel Tanks / Glass Lined Water Storage Tanks 0
