|Applications:||Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals||Acid And Alkalinity Proof:||PH1 - PH14|
|Impact Resistance:||Excellent||Usage:||Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect.|
|Steel Plates Thickness:||3mm - 12mm , Depends On The Diameter & Height||Defect Free:||Minimum Maintenance Needed|
Industrial Glass Fused Steel Tanks,
12mm Glass Fused Steel Tanks
There are many kinds of storage tanks such as Concrete Tank,Carbon Steel Tank, FRP Tank etc. However, more and more customers prefer to choose glass fused to steel tanks as their first solution for industrial liquid storage. Glass fused to steel tank is also known as glass lined steel tank,whose steel is finished where Glass and Steel are fused together to achieve the best of strength and flexibility of the steel combined with the superior corrosion resistance of the glass. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate and industrial wastewater treatment etc. applications
Glass Fused To Steel Tanks Specifications
|Coating color||dark blue, dark green , white, and customized|
|A standard steel plate size||effective size 2400mm x 1200 m|
|Steel plates thickness||3mm - 12mm , depends on the diameter & height|
|Coating thickness||0.25mm - 0.4mm, two coating internal and external|
|Acid and alkalinity proof||standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14|
|Elastic||same as steel sheet , around 500KN/mm|
|Service life||>30 years|
|Spark test||>1500 V|
|Permeability||gas and liquid impermeable|
|Easy yo clean||smooth, glossy, inert, anti-adhesion|
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
Center Enamel Co., Ltd is not only the first porcelain enamel Tanks manufacturer and supplier in China, but also the most experienced porcelain enamel tanks manufacturer in all of Asia. Center Enamel porcelain enamel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel porcelain enamel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Why Glass Fused to Steel Tanks?
1. Short installation period : compare to more than 40days installation time for other type tanks, usually porcelain enamel tanks only needs even less than 15days.
2. Superior corrosion resistance : porcelain enamel tanks can resist pH rage 1-14.
Beautiful appearance : standard color is dark green, and color can be customized according to customer’s request, to fit for surrounding environment.
Climate adaptability : GLS tanks can be used in almost all kinds of weather conditions, that is very important for some special areas.
Long service life : more than 30 years’ service life also shows its excellent quality.
Easy construction : No need big installation equipment, and can be designed for easily expand, dismantle and move.

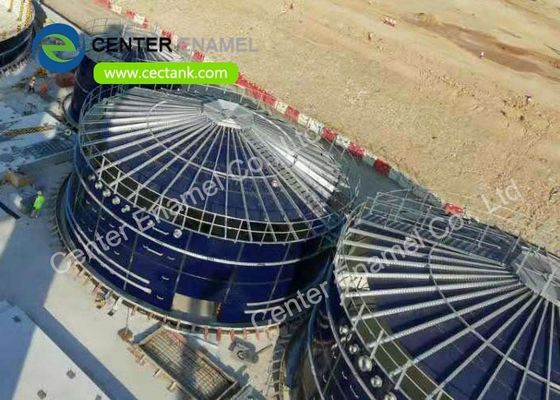

Glass Fused To Steel Tanks Projects
