10000 / 10k Gallons Glass Fused To Steel Water Tanks For Biogas Storage

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Feature: Eco-friendly, Durability Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals
Holiday Test: >1500v Permeability: Gas / Liquid Impermeable
Tank Body Color: Dark Green / Can Be Customized Foundation: Concrete Or Glass Fused Steel
High Light:

glass fused to steel water tanks


above ground fuel storage tanks

Product Description

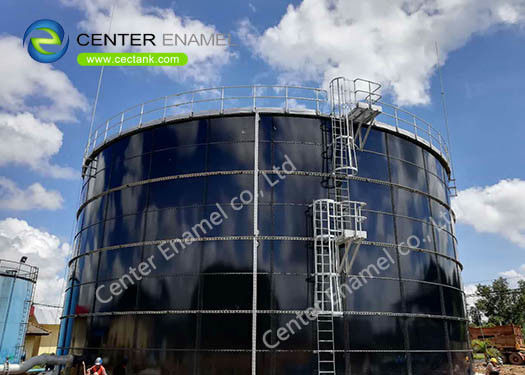

10000 / 10k Gallons Glass Fused To Steel Water Tanks For Biogas Storage


Our glass fused to steel water tank is composed of glass-lined to steel plate, special sealant, self-locking bolts and double membrane roof offering volume from 20m³ to 20000m³. Our glass fused to steel water tank is mainly applied to large scale farmland biogas storage, industrial effluent treatment, municipal sewage and wastewater treatment.


Glass Fused To Steel Water Tanks Specifications


Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds



Glass Fused To Steel Water Tanks Advantages

1. Easy and quick to be built

The construction of our glass-lined to steel tank is enamel coating steel sheet, special sealant, self-locking bolt, which is exempt from the difficult airtight craft.So the technical difficulty is greatly decreased, and the construction period is greatly shortened. To build a glass fused to a steel tank, the constructers are only required to master how to assemble and disassemble the steel mold.

2. Easy to maintain

The glass fused to steel tanks is with excellent performance of anti-leaking, anti-abrasion, anti-corrosion. And the color won't fade even after 30 years. It can be used in a harsh environment.

3. Durable

The glass-lined steel bolted tanks can last over 30 years.

4. Excellent safety feature

The glass fused to the steel tank is antistatic. And as contains titanium, our steel is twice harder than traditional steel plate

5. Low cost

The steel bolted tanks are easy to be transported, built, maintained and repaired. So the total cost is much lower when compared to other traditional tanks.


About Center Enamel

Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
