Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Adhesion: | 3,450N/cm |
---|---|---|---|
Service Life: | ≥30 Years | Steel Grade: | ART 310 |
Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Size Of Panel: | 2.4M * 1.2M |
Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
Capactiy Available: | 20 M3 To 20,000 M3 | Feature: | Eco-friendly, Durability |
Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Chemical Resistance: | Excellent |
High Light: | sludge holding tanks,sewage storage tank |

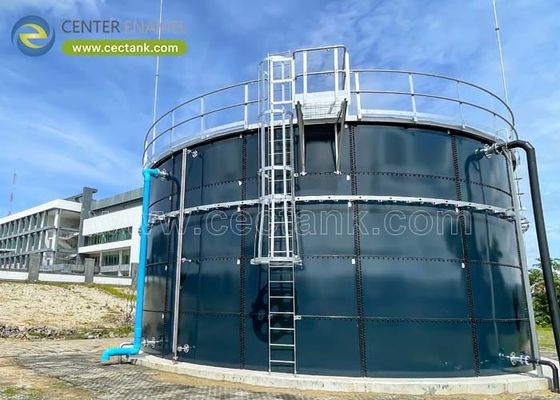

potable water tank Complying With AWWA Criterion For Potable Water Plant
Glass fused to steel bolted potable water tanks has been engineered to suit the most rigorous industrial applications. Constructed with Glass-Fused-to-Steel plate, Glass Fused Steel tanks can be built to a capacity of 20 m3 to 18, 000 m3 and are manufactured to handle the most extreme conditions.
The wall structures, roofs, and accessories of Glass fused to steel bolted potable water tanks can be fully compliant with all relevant international Standards. Glass fused to tanks can be fitted with any type of inlet and outlet nozzle configuration.
The superiority of the potable water tank
Characteristics of the potable water tank
Coating color | dark blue, dark green , white, and customized |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
About us
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
