| Holiday Test: | >1500v | Permeability: | Gas / Liquid Impermeable |
|---|---|---|---|
| Design Life: | 50years | Steel Grade: | ART 310 |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Corrosion Integrity: | Excellent |
| High Light: | fire fighting water tank,fire protection water storage tanks |
||

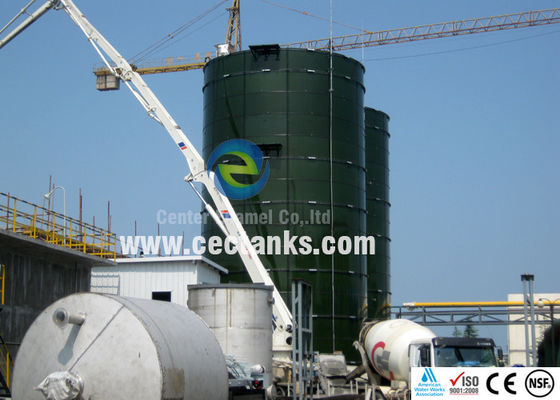

5000 m3 Fire Water / Fresh Water Storage Tank with Great Corrosion and Abrasion Resistance
Company Introduction
Center Enamel Co., ltd is a manufacture dedicated in enamel products since 1989, product range includes enamel/GFS tanks and enamel cookware, the enamel/GFS tanks are widely applied in bio-energy, wastewater treatment, potable water storage and dry bulk storage etc.
With nearly 30 years experience in enameling industry and more than 200 enamel formula patents, we are the largest enamel products fabrication base in China, and also the first one in China to produce double –sides enamel hot-rolled steel. Our enamel tanks have already been exported to USA, Australia, Singapore, Malaysia, Thailand, Niger and other 26 countries.
Our company own the most advanced automatic production line in China, tank design strictly conform to AWWA D103-09, OSHA and EN28765, and already passed ISO9001 quality system certification. We can customize various products, according to customer’s different operating requirements.
Glass Fused to Steel Tank Design Criteria
| Design Code: | AWWA D103 - 09 |
| Wind Load: | 100 Mph |
| Freeboard: | 300 mm or as per request |
| Seismic Intensity: | 8.0 |
| PH Range: | 3 - 11 |
| Specific Gravity: | 1.00 |
| Operating Temperature: | Ambient |
| Operating Pressure: | Atmospheric |
Tank Specification
| Coating Color: | Standard Green or Blue, or as per request |
| Number of Coatings: : | 2 Coatings |
| Number of Fire Treatment: | 2 Processes of Burnings |
| Coating Thickness: | 0.23 – 0.45 mm |
| Steel Size: | 2400 x 1200 mm |
| Steel Thickness: | 3 – 12 mm |
| Adhesion: | 3,450 N/cm2 |
| Elastic: | 500 KN/mm |
| Hardness: | 6.0 Mohs |
| Service Life: | More than 30 years |
| Holiday Test | 1500 V |
What is the advantage of Center Enamel Fire Water Tank?
1. Short Construction Period: compare to over 90 days construction time of concrete tank, it takes even less than 15 days for installation of GFS Fire Water Tank.
2. Superior Corrosion Resistance: Center Enamel Fire Water Tank can resist PH range of 1 - 14.
3. Long Service Life: the Center Enamel GFS Tank are design to work in a long service life as more than 30 years.
4. Tank Volume can be easily expand: GFS Fire Water Tank are not only easy to construct, but also convenient to expand, remove and rebuild.
5. Beautiful Appearance: the color of glass fused to steel tank could be customized as per client’s request based on Pantone Matching System.
