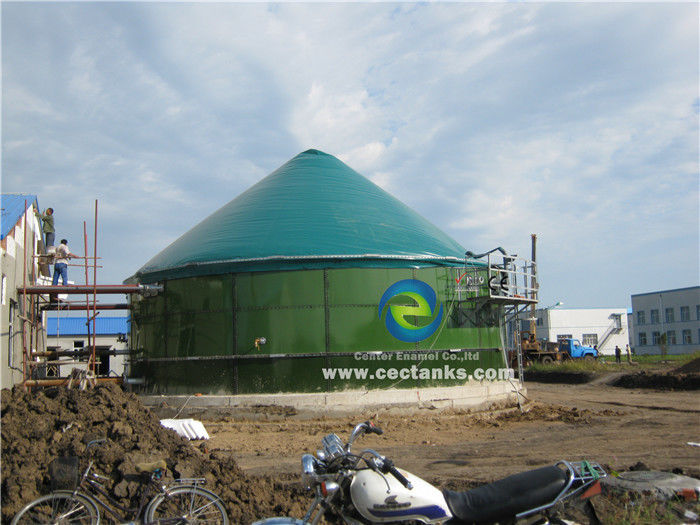

Wastewater Treatment Digester Sewage Treatment Tank With 0.25mm - 0.4mm Coating Thick
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161021021 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161021021 |
| Adhesion: | 3,450N/cm | Holiday Test: | >1500v |
| Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
| High Light: | wastewater treatment digester,sewage treatment tank |
||
Product Description
With Long Service Life Gfs Waste Water Treatment Tank Is Easy To Clean And Repair
Company Introduction
CEC tanks Co., ltd is a manufactory dedicated in vitreous enamel products 1989, our main product is GFS storage tank .We are not only the enamel production base in China , but also the first one to produce double -sides enamel hot-rolled steel in China. We are the largest and the most professional enamel bolted tank supplier in China.
We have more than 20 years experience of enamel production, company covers an area of 80,000 square meters. We have the most advanced production line, which already passed, and product and design can reach AWWA D103-09 standard, OSHA and meet European standards. We are the only enterprise that can produce AA grade (acid-proof and alkali- proof ) enameled sheet in China now. According to customers’ different operating requirements, we can customize various products.
Advantages of glass fused to steel tank
1. With short construction period and low project cost
2. Superior corrosion resistance, and it’s service life is more than 30 years
3.Convenience installation, easy construction and good quality
4. Tank volume is easily expanded
5. With beautiful appearance and color can be customized
6. Installation no subject to weather condition
7. During installation no need any big equipment
8. Easily expanded, dismantled and moved
Specification of GFS tank
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size |
Full size:2450mmx 1250mm effective size : 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm |
| Coating thickness | 0.25mm - 0.4mm |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy to clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds |
Application of GFS tank
| Power and Energy | Water supply and Treatment | Wastewater Treatment | Industrial dry bulk storage | |
| Biogas biomass | Potable water/Water storage | Buffer Pool | Mineral | |
| Aviation oil | Bitter-brackish water | Aerobic Reactor | Wood product | |
| Process water | Raw water/Fresh water | Biological Filter | Stone/Clay/Glass | |
| Boiler Feedwater | Aeration | Effluent Treatment | Chemicals | |
| Fuel Oil | Biological Filter | Regulating Tank | Petrochemicals | |
| Kerosene | Water Purifying | Anaerobic reactor | Foods | |
| DI water | Fire-fighting water | Leachate Storage | Plasthetics | |
| Coal Storage | Saline Water/Brine Water | Irrigation water | Grain / Seeds | |
| Diesel | Sedimention Container | Water Purifying | ||
| Drilling mud | Ro Water | Sedimentation Container | ||
| Reverse osmosis water | Sea water desalinization | Sludge Tank | ||
| Fly ash silo | Lime Silo | Animal Wastes | ||
