800 000 Gallon Glass Lined Steel Fire Protection Water Storage Tanks For Commercial Fire Protection

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI Model Number W20160831001
Design Life: 50years Tank Body Color: Dark Green / Customized
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
High Light:

800000 Gallon Water Storage Tanks

,

3450N/cm Glass Lined Water Storage Tanks

,

500KN/mm Fire Water Tank

Product Description

800 000 Gallon Glass Lined Steel Fire Protection Water Storage Tanks For commercial Fire protection





Glass Lined Steel Fire Protection Water Storage Tanks are made from high-quality Glass-Fused-to-Steel panels. All the Glass-Fused-to-Steel panels and tanks accessories are manufactured in a factory and are bolted together at the desired location. Glass Lined Steel Fire Protection Water Storage Tanks are the perfect choice for fire protection water storage.



Standard sizes for Glass Lined Steel Fire Protection Water Storage Tanks go up to almost 20000m³; however, custom sizes and dimensions are also available. Center Enamel also offers multiple roof options: Glass-Fused-to-Steel roof with external/internal beams, Aluminum Alloy Trough Deck Roofs, FRP Roofs, Aluminum Dome Roofs. Bolted steel tanks can be disassembled and moved as needed and installed quickly by a small team.



Glass Lined Steel Fire Protection Water Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds







Glass Lined Steel Fire Protection Water Storage Tanks is the best choice for 200000 Gallon fire protection water storage. Over 30 years of bolted steel tank manufacture experience, Center Enamel has become the bolted steel tanks industry leader in Asia and is certified to ISO9001, NSF61LFGB, BSCI, and other international standards. And our bolted steel tank engineers make tank engineering calculations on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the tank structure's adequate security in long-term service life. Also, our Glass Lined Steel Fire Protection Water Storage Tanks have been exported to more than 80 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.

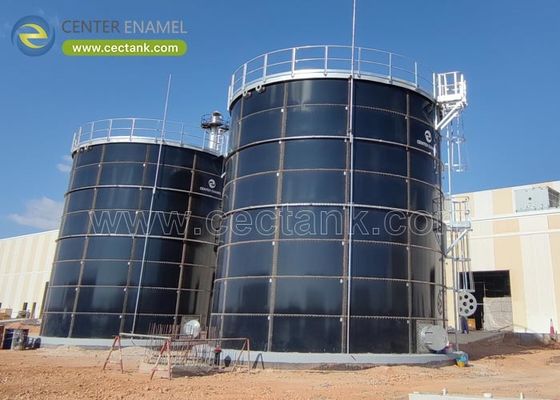

Glass Lined Steel Fire Protection Water Storage Tanks Project References



800 000 Gallon Glass Lined Steel Fire Protection Water Storage Tanks For Commercial Fire Protection 0
