Glass Lined Steel Drinking Water Storage Tanks For Indutrial Liquid Storage

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20171016010
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 10-30 days after deposit received
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20171016010
Design Life: 50years Capacity: 20 M3 To 18,000 M3
Tank Body Color: Dark Green / Can Be Customized Foundation: Concrete Or Glass Fused Steel
Size Of Panel: 2.4M * 1.2M Usage: Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect
High Light:

OSHA Drinking Water Storage Tanks

,

3450N/cm Drinking Water Storage Tanks

Product Description

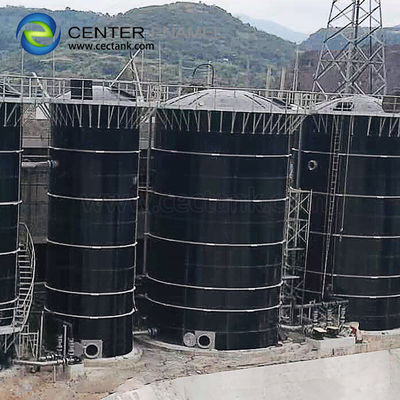

Glass lined Steel Drinking Water Storage Tanks For Indutrial Liquid Storage



Glass lined Steel Drinking Water Storage Tanks are mainly consisted of glass fused to steel plates. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond. Combing the strength and flexibility of steel and the corrosion resistance of glass, the glass fused to steel plates can resist PH range from 1 to 14, which allows glass fused to steel plates used for various storage applications .



Glass lined Steel Drinking Water Storage Tanks Specification

Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds





Glass lined Steel Drinking Water Storage Tanks Advantages



1. factory fabrication tank . No painting or spray on erection site . The process of glass coating is finished in factory, so there is no spray works to be done on job site . Glass fused steel tank is a kind of factory pre-fabricated tank

2. superior performance in corrosion resistance and against rust : glass fused steel tank is combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body

3. No need crane or other large equipment during erection. Since glass fused steel tank is bolted type tank . So no need for crane to hang the tanks and located it. Workers just assemble steel plates and bolted them piece by piece

4. Minimal maintenance cost : once it is erected, there is minimal maintenance requirement needed.

5. Not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like desert and extremely cold places.

6. Can be designed to future expansion, dismantle or re-movement. If it is specified before the tank manufacturing that a future expansion is needed, engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another rings

7. Free service for technical drawings . Once a order deal, all drawings, pictures, technical documents are provided to customer free of charge .

8. Turn key service from proposal to tank commissioning . Our team provides proposals according to customer’s tender file or FRQ , shipment of material, tank erection , water proof treatment and commissioning.



About Center Enamel



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel bolted tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel bolted tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel bolted tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2021, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
