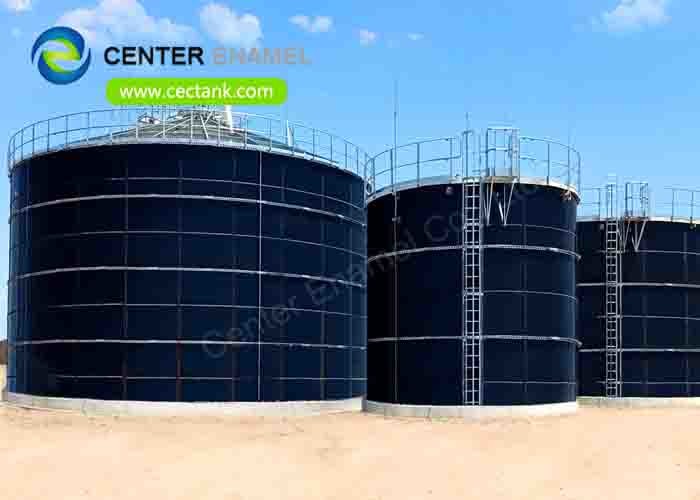

Gas impermeable 6.0Mohs GFS Industrial Water Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161227005 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161227005 |
| Hardness: | 6.0Mohs | Permeability: | Gas / Liquid Impermeable |
| Tank Body Color: | Dark Green / Can Be Customized | Tank Material: | Glass Fused To Steel |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Chemical Resistance: | Excellent |
| High Light: | GFS Industrial Water Tanks,6.0Mohs Industrial Water Tanks |
||
Product Description
Flexibility to Re-model, Extend and Re-site GFS Industrial Water Tanks With Convenient Installation
Glass fused steel (GFS) is the ultimate storage tank solution that utilizes a mature product with significant advantages, also known as glass-lined steel (GLS). For applications where the polyline tank is not suitable or the tank size exceeds 20000m³, we recommend the use of GFS tanks.
GFS industrial water tank combines the strength and flexibility of steel and outstanding corrosion resistance of glass, which providing many advantages over standard epoxy coated or welded painted storage tanks.
Center Enamel has more than 30 years experience in GFS industrial water tank design, manufacture and installation. Glass lined steel industrial water tank show good chemical and physical performance because it contains titanium. Furthermore, the superfine glass foam-like structure of the enameling layer, enable the materials’ excellent flexibility and durability.
GFS Industrial Water Tanks Specification
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
GFS industrial water tank has become the premium water and liquid storage solution as below reasons:
1. Great volume: wide range of capacity of selection up to 20,000 m3.
2. Easy installed, expanded, dismantle, removed: The modular system allows not only fast rapid installation, expand, or removed not subject to any weather, but also easily repaired.
3. Strong abrasion / corrosion resistance (PH1- 14 resistance): The strong bonding enamel coating not only can prevent the corrosion of tank, but also resistance to strong acid and strong alkali.
4. Suitable for various kind of fields: Not only industrial effluent /Wastewater, sewage treatment, it also can be sued in power and energy, agriculture storage tanks, biogas digester.
5. Low project cost: as short construction, installed, the cost is much lower then other traditional tanks.
6. Long life service: More then 30 years service life.
Application fields
Municipal: drinking water, municipal waste leachate storage, sewage treatment, wastewater treatment and anaerobic digestion
Industrial: industrial effluent storage and process, industrial effluent digestion, process water storage and bulk solids storage
Agricultural: slurry storage, farm biogas production and grain and forage silos
Mining: Diesel, Kerosene, Coal storage, Fly ash silo, and so on.
Biofuels: Biogas digester, Biogas biomass,.anaerobic reactor, aerobic reactor.
