Two Coating Internal Bolted Steel Biogas Storage Tank
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161227001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161227001 |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Holiday Test: | >1500v | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| Capacity: | 20 M3 To 18,000 M3 | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| High Light: | Bolted Steel Biogas Storage Tank,Two Coating Biogas Storage Tank |
||
Product Description

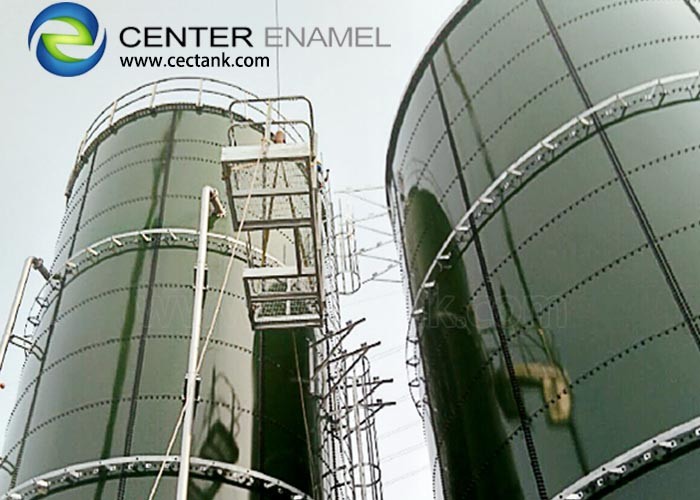

Bolted Steel Biogas Storage Tank Biogas storage systems
The biogas storage system has made a positive contribution to the generation of renewable energy, thus making a positive contribution to environmental protection. Genzon Technology provides global customers with enamel assembly tanks for storing biogas from wastewater treatment plants. This biogas storage design has been tested and verified for decades and has now become an indispensable feature in the design of any modern wastewater treatment plant in the world.
Our biogas storage tank are made of Glass-Fused-to-Steel, so we call it Glass-Fused-to-Steel tank which combines the strength and flexibility of steel and the corrosion resistance of glass. bolted steel biogas storage tank can provide many advantages over standard epoxy or welded painted storage tanks. Our biogas storage tank has more than 30 service life.
bolted steel biogas storage tanks are an active contribution to the generation of renewable energies, and thus to environmental protection in general. Our Glass-Fused-to-Steel biogas storage tank design has been tested and proven over the decades and now is an integral feature in the design of any modern wastewater treatment plant worldwide. As the leading supplier of the biogas storage tank, we keep the value chain as long as possible in our own company.
Coated Bolted Steel Biogas Storage Tank Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
The advantage of Coated Bolted Steel Biogas Storage Tank
1. Advanced technology and innovative edge protection ensure Center Enamel Glass-Fused-to-Steel Tanks are an exceptional solution in the most harshest storage environment.
2. Center Enamel Glass-Fused-to-Steel tanks with superior corrosion resistance can be utilized in both the liquid and gaseous zone and maximizing the service life of tank structure.
3. Customized colors make the tank harmonized with the surrounding environment.
4. Long service life glass coating requiring minimal maintenance, reducing the risk & loss of project shut down during operation.
5. Modular bolted construction give shorter installation period with simple installation tools.
6. The tank can be dismantled and rebuilt, gives continuous asset value to the product.
Coated Bolted Steel Biogas Storage Tank Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Coated Bolted Steel Biogas Storage Tank Project References
