Bolted Steel Industrial Water Tanks For Coco Cola Wastewater Treatment Plant
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160504007 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160504007 |
| Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| Steel Grade: | ART 310 | Roof: | Can Be Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Service Life: | Over 30 Years | High Light: | AWWA D103 Industrial Water Tanks,25000m3 Industrial Water Tanks,Anti Adhesion Industrial Water Tanks |
Product Description

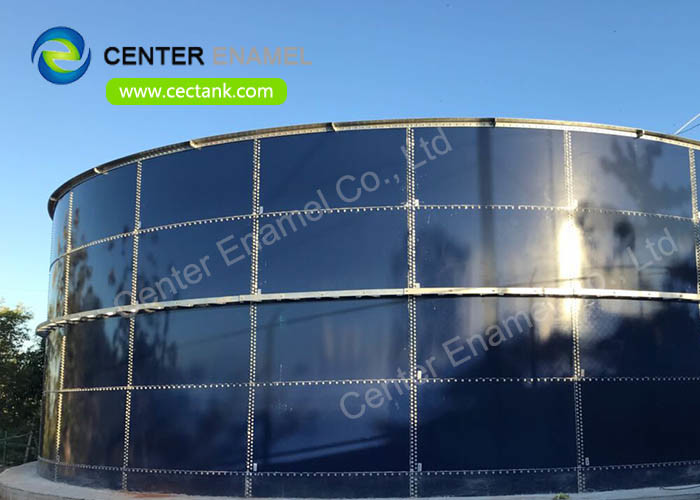

Bolted Steel Industrial Water Tanks For Coco-Cola Wastewater Treatment Plant
Center Enamel supply a large range of tanks suitable for industrial usage, from 20m³ up to 25,000 m³.
This Coco-Cola Plant Wastewater Treatment project used two Glass-Fused-to-Steel Industrial Water Tanks as industrial wastewater storage tanks for the Coco-Cola bottling plant in Seremban, where is close to Kuala Lumpur city. Most of Coco-Cola products' manufacturing process will produce wastewater. In order to meet Coco-Cola's global water goal requires, all the wastewater needs to be treated before they back to communities and nature .
In this industrial wastewater treatment, we provided 2 sets of Glass-Fused-to-Steel tanks as adjusting tank with aluminum alloy deck roof and EGSB tank with enamel roof. And In this particular case, technical assistance was received from Center Enamel , through the presence of two installation consults on site during construction of the tank. Coco-Cola Plant hire local workers , and leaving those workers trained and with the capacity to install the Glass-Fused-to-Steel tanks.
Glass Fused To Steel Industrial Water Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
About us
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
