Glass Fused To Steel Wastewater Storage Tank For Municipal Sewage Treatment Plant

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Tank Material: Glass Fused To Steel Foundation: Concrete Or Glass Fused Steel
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure Size Of Panel: 2.4M * 1.2M
Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion Permeability: Gas / Liquid Impermeable
High Light:

Glass Fused Steel Wastewater Storage Tank

,

Municipal Sewage Wastewater Storage Tank

,

Inert Wastewater Storage Tank

Product Description

Glass Fused To Steel Municipal wastewater storage tank For municipal sewage treatment plant



We partner with municipal project company to ensure compliance across local, state, and federal regulations while offering cost-effective municipal wastewater storage solutions that prioritize safety.



When you choose Center Enamel, you aren’t just a customer, you’re our partner. We bring more than decades of industry experience and expertise to every municipal wastewater project and customer relationship.



Our team of industry experts will work with you to find solutions that meet your unique, complex needs and fit your budget. Whether you have a last-minute rental need, an emergency, or want basic storage options, as our customer and partner, we’ve got your back!



Why the municipal sewage treatment plant choose Glass-Fused-to-Steel Tank?



The service life is more than 30 years with a lower maintenance, Glass-Fused-to-Steel is two materials - Enamel glaze and steel plate surface are fused together after heat treatment at 850-940℃ and then create a tough and inert bond, which combines the strength of steel with the outstanding chemical and physical corrosion resistance of glass. Then it is easy to install , dismantled, removed and relocated,Glass-Fused-To-Steel tank is assembled by Glass-Fused-To-Steel plate and fixed by self - locking bolt. Then the sealing glue is applied to the joint gap and bolt position to improve airtightness of the tank. Also tank’s color can be customized ,which enable Glass-Fused-to-Steel tank better integrate with the surrounding environment. That is why so many municipal sewage treatment plant choose Glass-Fused-to-Steel Tank as the municipal sewage storage tank.



Glass Fused To Steel Municipal Sewage Storage Tank Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



Municipal wastewater storage tank manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

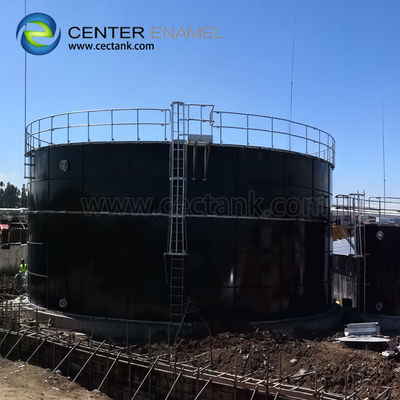

Municipal wastewater storage tank Project References




Glass Fused To Steel Wastewater Storage Tank For Municipal Sewage Treatment Plant 0
