Glass Fused To Steel Industrial Water Tanks With AWWA D103-09 OSHA
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Corrosion Integrity: | Excellent | Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure |
| Size Of Panel: | 2.4M * 1.2M | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
| Feature: | Eco-friendly, Durability | Steel Grade: | ART 310 |
| High Light: | OSHA Industrial Water Tanks,12mm Steel Industrial Water Tanks,Glass Fused Liquid Storage Tanks |
||
Product Description
Glass Fused To Steel Industrial Water Tanks with AWWA D103-09, OSHA, ISO/EN 28765 standards
Glass fused to steel industrial water tanks are the most commonly accepted solution for storing virtually any type of liquid used in commercial and industrial applications and are generally accepted as the industry standard. Center Enamel Co., Ltd is dedicated to providing quality glass fused to steel water storage tanks. Center Enamel Co., Ltd is not only the first glass fused to steel industrial water storage tanks manufacturer and supplier in China, but also the most experienced glass fused to steel water storage tanks manufacturer in all of Asia. Center Enamel glass fused to steel water storage tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. We will strive to implement a long term and repeat relationship with our clientele, based on quality, safety, timely service and anticipation for their needs.
Glass Fused To Steel Industrial water Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Fused To Steel industrial Water Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

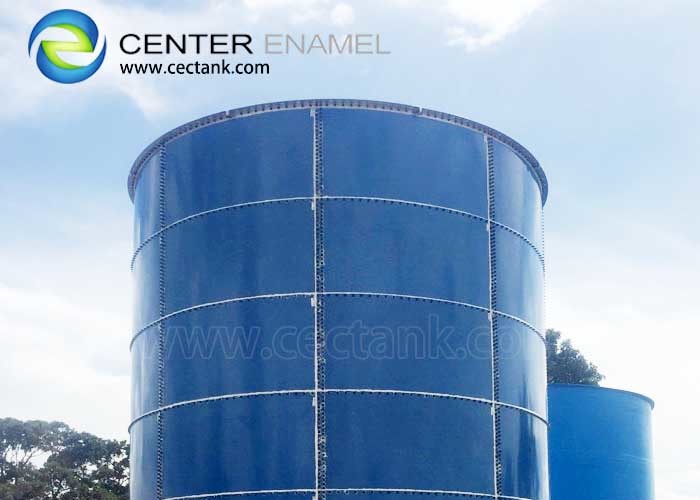

Glass Fused To Steel industrial Water Storage Tanks Project
