NSF ANSI 61 Standard Potable Water Tanks For Beverage Processing Industry
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012614 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012614 |
| Standard: | AWWA D 103 , OSHA | Warranty Period: | 2 Years Free Of Charge |
| Capacity: | Customized, 20 M3 To 18,000 M3 | Lifespan: | Over 30 Years |
| Coating Thickness: | 0.25mm～0.40mm ，double Coating | Coating Color: | Customized |
| High Light: | 20m3 Potable Water Tanks,0.40mm Coating Potable Water Tanks,6.0 Mohs Liquid Storage Tanks |
||
Product Description

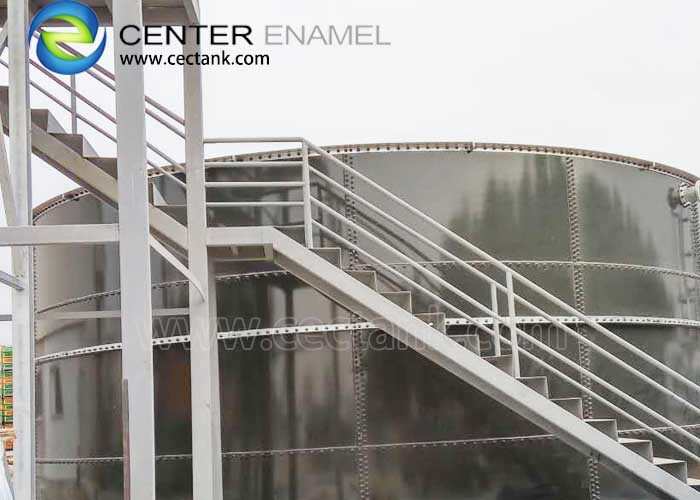

NSF / ANSI 61 Standard Potable Water Tanks For Beverage Processing Industry
Potable water, commonly referred to as drinking water, can safely be stored by Center Enamel glass fused to steel bolted potable water tank. Center Enamel potable water tanks are designed and manufactured to NSF/ ANSI 61 standards. All our potablel water tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our GFS tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.
Glass Fused to Steel Potable Storage Tanks
After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate and industrial wastewater treatment etc. applications
Glass Fused to Steel Potable Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Fused to Steel Potable Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Fused to Steel Potable Storage Tanks Project References
