Glass Fused Steel Slurry Fermentation Tanks For Wastewater Treatment Projects
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20170706011 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20170706011 |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Chemical Resistance: | Excellent |
| Size Of Panel: | 2.4M * 1.2M | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
| Corrosion Resistance: | Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
| High Light: | Fused Steel Slurry Fermentation Tanks,AWWA D103 Slurry Fermentation Tanks |
||
Product Description

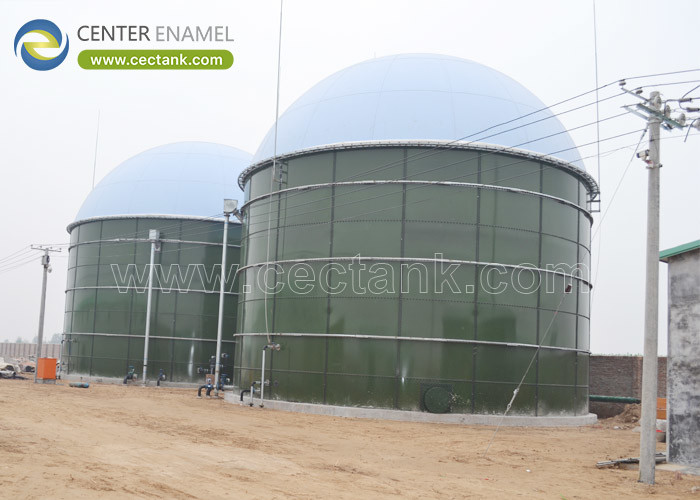

Glass Fused Steel Slurry Fermentation Tanks For Wastewater Treatment Projects
Center Enamel supply a range of Glass Fused to Steel slurry frementation tanks suitable for wastewater treatment projects. We design, manufacture and installation these slurry storage tanks for over 30 years, we are the first Glass Fused to Steel slurry fermentation storage tanks manufacturer in China. With compliance to NSF61,Center Enamel ’s standard range of water storage tanks for wastewater treatment are available in 20 steres to 20,000 steres and meets international water tank design standards.
Our Glass Fused to Steel slurry fermentation tanks are made from individual sections that have been manufactured and finished in a controlled factory setting. This allows each section to be formed according to strict structural specifications, with quality bends, welds and surface preparations that are monitored with comprehensive quality control measures. Once the sections are complete, they are powder-coated in a tightly-controlled environment, which results in a durable finish that virtually eliminates corrosion and maintenance issues; unlike field-welded tanks, which must be finished at the installation site, often resulting in an imperfect and inconsistent finished coating that is susceptible to corrosion and other damage.
Glass Fused Steel Slurry Fermentation Tanks Specifications
| Design Code | AWWA D103 |
| Wind load | 250 KM/h |
| Freeboard | 300mm or as per request |
| Seismic Zone | D |
| Fluid Temperature | -5~ 77 Degree C. |
| PH Range | 3 - 11 |
| Specific Gravity | 1.105 |
| Edge Protection | Yes, enameled edge |
| Vacuum | -500PA( enamel roof), -200PA (membrane roof) |
| Operating temperature | Ambient |
| Operating pressure | Atmospheric |
| Bolts | galvanized bolt with PP capped |
| Bottom connection | Above ground (as per foundation drawings) |
| Tank color | As customer’s request |
About Center Enamel
Center Enamel Co., Ltd is not only the first Glass Fused to Steel fire water storage tanksmanufacturer and supplier in China, but also the most experiencedGlass Fused to Steel fire water storage tanksmanufacturer in all of Asia. CECGlass Fused to Steel fire water storage tanksare wildly used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center EnamelGlass Fused to Steel fire water storage tankshave been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
