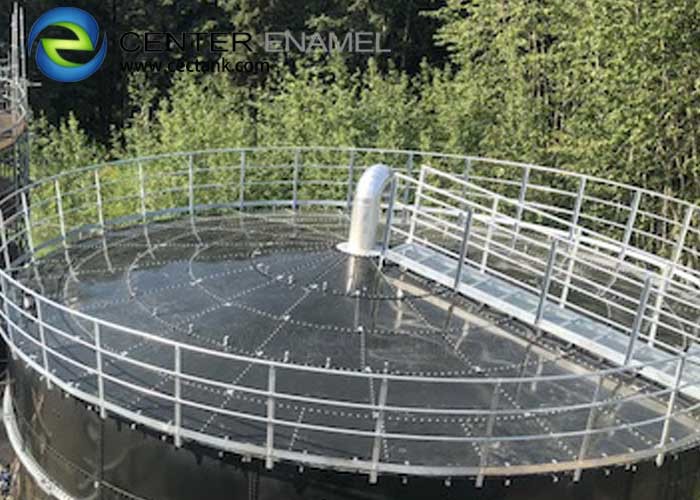

NSF Bolted Steel Potable Water Storage Tanks

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Feature: Eco-friendly, Durability Tank Material: Glass Fused To Steel
Chemical Resistance: Excellent Size Of Panel: 2.4M * 1.2M
Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion Capactiy Available: 20 M3 To 20,000 M3
High Light:

NSF Bolted Water Storage Tanks

,

2400mmx1200m Water Storage Tanks

,

20000m3 Liquid Storage Tanks

Product Description

NSF Certificated Bolted Steel Water Storage Tanks for Potable Water Storage



Bolted Steel Water Storage Tanks are the leader of Water Storage Solutions, which is widely used as potable water storage for drinking water project, food process factory. With the advantage of both GLASS and STEEL, Bolted Steel Water Storage Tanks can resist corrosion of Waste Water of PH 1 - 14. All our bolted steel water tanks are NSF Certifications.The main advantages of bolted storage tanks are cost savings through prefabricated components, efficient production methods, and rapid and efficient tank installation and installation.

Bolted Steel Water Storage Tanks Specifications

Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds





Bolted Steel Water Storage Tanks Advantages



advantages







1. factory fabrication tank. No painting or spray-on erection site. The process of glass coating is finished in the factory, so there is no spray works to be done on the job site . Glass fused steel tank is a kind of factory pre-fabricated tank



2. superior performance in corrosion resistance and against rust: glass fused steel tank is a combination of glass and steel . Glass is coated to steel and become a protection layer to the tank body



3. No need crane or other large equipment during erection. Since glass fused steel tank is a bolted type tank. So no need for a crane to hang the tanks and located it. Workers just assemble steel plates and bolted them piece by piece



4. Minimal maintenance cost: once it is erected, there is minimal maintenance requirement needed.



5. Not subjected to severe weather and environment. Glass fused steel tank is not subjected to environmental and weather. It can be erected at remote places like a desert and extremely cold places.



6. It can be designed for future expansion, dismantle, or re-movement. If it is specified before the tank manufacturing that future expansion is needed, the engineer will make the structure suitable for future enlarged capacity. It can be realized by simply adding another ring



7. Free service for technical drawings. Once an order deal, all drawings, pictures, technical documents are provided to the customer free of charge.



8. Turnkey service from proposal to tank commissioning. Our team provides proposals according to the customer’s tender file or FRQ, a shipment of material, tank erection, waterproof treatment, and commissioning.

About Center Enamel Co., Ltd



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
