Water Storage Bolted Steel Tanks For Biogas Waste Water Treatment Plant
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Steel Grade: | ART 310 | Size Of Panel: | 2.4M * 1.2M |
| Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Capactiy Available: | 20 M3 To 20,000 M3 |
| Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height |
| Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect. | Easy To Cle: | Smooth, Glossy, Inert, Anti-adhesion |
| Warranty Period: | 2 Years Free Of Charge | Impact Resistance: | Excellent |
| Foundation: | Concrete Or Glass Fused Steel | Installation: | By Jacking Machine Or Steel Pole, Fast In Installation |
| High Light: | ART 310 Bolted Steel Tanks,glossy Bolted Steel Tanks,20000m3 bolted steel water tank |
||
Product Description

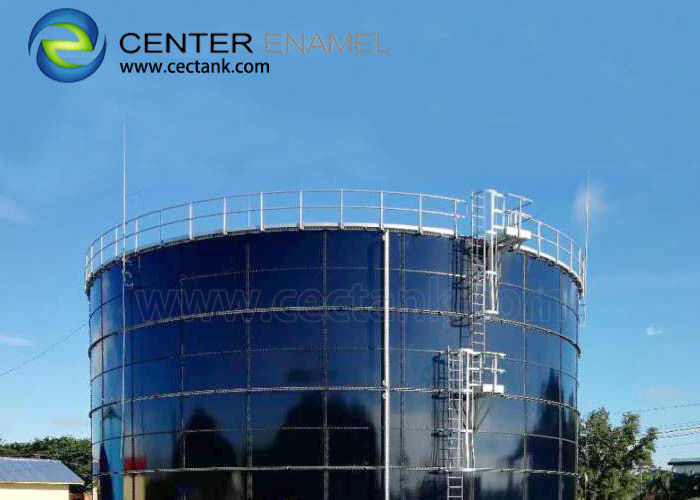

Bolted Steel Water Storage Tanks for Biogas Plant, Waste Water Treatment Plant
Bolted Steel Water Storage Tanks are the leader of Water Storage Solutions, which is widely used as Waste Water Storage Tanks for Biogas Plant, Waste Water Treat Plant (WWTP) etc. With the advantage of both GLASS and STEEL, Bolted Steel Water Storage Tanks can resist corrosion of Waste Water of PH 1 - 14.
Bolted Steel Water Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Bolted Steel Water Storage Tanks Accessories
The Glass Fused To Steel Tanks are delivered as a complete package.
The standard set of waste water storage tanks include:
1. Glass fused to steel sheets
2. Self - Locking Bolts
3. Sealant
About Center Enamel Co., Ltd
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
