Bolted Steel Liquid Storage Tanks For Commercial , Industrial And Municipal Water Projects
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI |
| Model Number: | W20160831001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI | Model Number | W20160831001 |
| Foundation: | Concrete Or Glass Fused Steel | Tank Body: | Glass Fused To Steel |
| Service Life: | ≥30 Years | Holiday Test: | >1500v |
| Tank Material: | Glass Fused To Steel | Corrosion Integrity: | Excellent |
| High Light: | 2400mmx1200m Liquid Storage Tanks,anti adhesion Liquid Storage Tanks,NSF 61 chemical holding tanks |
||
Product Description

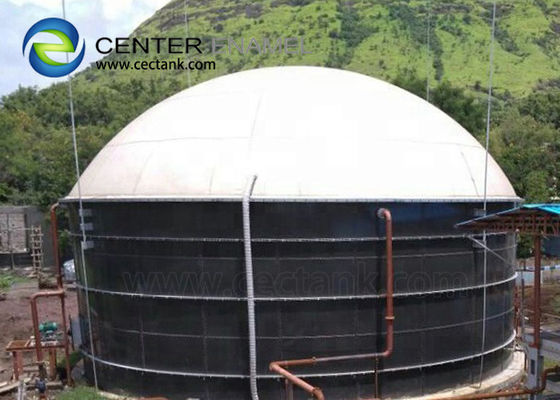

Bolted Steel Liquid Storage Tanks For Commercial, Industrial and Municipal Water Projects
Center Enamel has been designed, manufactured, and installed bolted steel tanks for many years. These bolted steel liquid storage tanks are fabricated with glass fused to steel panels bolted together with custom rubber gaskets separating each panel, making them water-tight. Each liquid storage tank is engineered to your site’s specification and installed by a factory-trained crew. They are AWWA D103-09 and NSF 61 standards, with a variety of roof styles, colors, add on options that make them the perfect solution for many commercial, industrial, and municipal water projects.
Center Enamel is the first Glass-Fused-to-Steel Bolted liquid storage tank manufacturer in China. In the past 30 years, We have designed, manufactured, and installed our Glass-Fused-to-Steel Bolted liquid storage tanks for more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. Center Enamel is not only the first Glass-Fused-to-Steel Bolted liquid storage tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel Bolted liquid storage tanks manufacturer in all of Asia. We offer 30m³ to 20000m³ tanks to meet any kind of industry requirement.
Bolted Steel Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
With Center Enamel, our Glass-Fused-to-Steel Bolted liquid storage tank systems are engineered and fabricated to satisfy your unique specifications, including AWWA D103-09. Our professional engineers have years of design experience in a wide variety of industry-specific standards and applications. our storage tank engineers make tank engineering calculations on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the Glass-Fused-to-Steel Bolted liquid storage tank structure's adequate security in long-term service life.
