Bolted Steel Industrial Liquid Storage Tanks For Industrial Wastewater Treatment Project

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20160504007
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20160504007
Material: Glass Fused To Steel Foundation: Concrete Or Glass Fused Steel
Steel Grade: ART 310 Roof: Can Be Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
Service Life: Over 30 Years High Light:

GRP roof Liquid Storage Tanks

,

membrane roof Liquid Storage Tanks

,

BSCI Industrial Wastewater Storage Tanks

Product Description

Bolted Steel Industrial Liquid Storage Tanks For Industrial Wastewater Treatment Project



Center Enamel designs, manufacture and install bolted steel industrial liquid storage tanks for more than 30 years. Our systems are suitable for all stages of wastewater treatment including mixing tanks, flocculation tanks, sedimentation tanks and others. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate and industrial wastewater treatment etc. Applications.



Wastewater from municipal, industrial sites, landfills, agricultural pesticides, and other sources cannot be indiscriminately discharged into the environment where they can pollute bodies of water or soil and generate air pollution. Preliminary treatment, primary treatment, secondary treatment, tertiary treatment, and disinfection-the typical treatment procedures all require holding tanks. Center Enamel offers a wide variety of bolted tank systems applicable to wastewater treatment. Our Bolted steel tanks have been used for sludge thickening and digestion tanks. Bolted Steel tanks are excellent choices for landfill runoff water.



Bolted Steel Industrial Liquid Storage Tanks Specifications





Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds





Bolted Steel Industrial Liquid Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

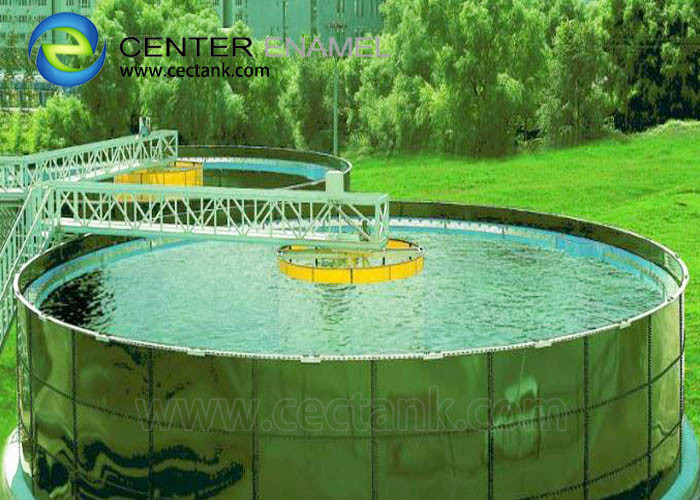

Bolted Steel Industrial Liquid Storage Tanks Project References



Bolted Steel Industrial Liquid Storage Tanks For Industrial Wastewater Treatment Project 0
