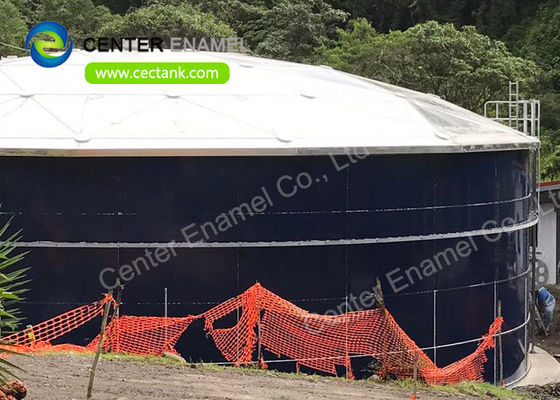

20000m3 Glass Fused To Steel Liquid Storage Tanks For Industrial Water Storage Project

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012703
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012703
Adhesion: 3,450N/cm Elastic: Same As Steel Sheet ,around 500KN /mm
Acid And Alkalinity Proof: Standard Sheet PH:3~11 Special Sheet PH: 1~14 Hardness: 6.0Mohs
Holiday Test: >1500v Design Life: 50 Years
Capacity: 20 M3 To 18,000 M3 Tank Body ColorDark Green / Can Be Customized: Dark Green / Can Be Customized
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And Exteral High Light:

20000m3 Liquid Storage Tanks

,

0.25mm Liquid Storage Tanks

,

500kN/mm crude oil storage tanks

Product Description

Glass fused steel tanks are available in various sizes and are suitable for many applications, such as fire water tanks, raw water tanks, biogas tanks, drinking tanks, and reverse osmosis tanks. Center Enamel is one of the leading companies in the production of glass melting steel tanks in China. Center Enamel has successfully installed more than 10,000 storage tanks worldwide, adheres to the strict policy of tank manufacturing worldwide, and has passed tank manufacturing certifications of various international organizations.

The glass fused steel industrial liquid storage tank is composed of glass molten steel, special sealants, self-locking bolts, and other accessories. Among them, the enamel board is the most important part. Enamel plates are glass and steel fused together to achieve the best of both: the strength and flexibility of steel combined with superior corrosion-resistant glass.

Our glass-lined liquid storage tanks for the steel industry are available in a full range of colors. The tanks range from 20 cubic meters to 20000 cubic meters. The engineering design of the steel industry liquid storage tank for enamel glass melting in the center meets or exceeds the American Waterworks Association (AWWA D103-09 and EN/ISO28765:2011, our glass melting steel tank engineers carry out oil tank engineering calculations for each specific tank structure according to the project Local environmental conditions, such as snow load, wind speed, seismic zone, etc., to ensure that the water tank structure is safe and long-term.

Our liquid storage tanks are ideal for fire fighting water, urban drinking water storage, commercial rainwater collection, rainwater storage, and treated water storage in the industrial, mining, and agricultural sectors.

GLS water storage tanks can be used for various water storage containers, such as vacation sewage storage, urban sewage storage, drinking water storage, fire storage water, rainwater storage, etc.



Glass Fused to Steel Industrial Liquid Storage Tanks Specifications



Category Specification
Coating Color dark green, white, blue and also color can be customized
Coating Thickness 0.25 - 0.40mm , double coating
Acid and alkalinity proof Standard pH: 3 - 11
Special pH: 1 - 14
Adhesion 3450 N / cm
Elastic Same as steel sheet, around 500 kN / mm
Hardness 6.0 ( Mohs )
Service life ≥ 30 Years
Holiday test > 1500 V
Permeability Gas / liquid impermeable
Easy to clean Smooth, glossy, inert, anti-adhesion
Corrosion resistance Excellent,suitable for water storage, waste water treatment, sewage treatment, high sulfur crude oil,salt fox,organic and inorganic compounds



Glass Fused to Steel Industrial Liquid Storage Tanks Advantage:



Short construction period, cost-effective tank solution

Superior corrosion resistance, service life is more than 30 years

Easy to install, no need for big installation equipment and/or very skilled labors

Tank volume can be easily expanded

It can be dismantled, removed and relocated

Elegant appearance, tank color can be customized



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
