double coating Liquid Storage Tanks With Glass Lined Steel Technology

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012614
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012614
Standard: AWWA D 103 , OSHA Warranty Period: 2 Years Free Of Charge
Capacity: Customized, 20 M3 To 18,000 M3 Lifespan: Over 30 Years
Coating Thickness: 0.25mm~0.40mm ,double Coating Coating Color: Customized
High Light:

double coating Liquid Storage Tanks

,

18000m3 Liquid Storage Tanks

,

OSHA chemical storage tanks

Product Description

Glass Lined Liquid Storage Tanks with Glass lined steel technology

Glass Lined Liquid Storage Tanks

Glass lined steel technology has become the premium in water and liquid storage tanks.All our glass lined liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our GFS tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life. These design and steel material standards are proven in thousands of tanks all over the world. Center Enamel manufactures tanks in an ISO 9001:2015 certified facility.

Glass-lined steel technology

After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, During this period, the interaction between the glass and steel accelerates, an interfacial adhesion layer is formed and synthesis of the two materials takes place. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and glass lined steel tanks are widely used in bio-energy, municipal sewage, landfill leachate, and industrial wastewater treatment, etc. Applications

Glass Lined Liquid Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first glass lined water storage tanks manufacturer and supplier in China, but also the most experienced glass-lined steel water storage tanks manufacturer in all of Asia. Center Enamel glass lined steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC glass-lined steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel glass-lined steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

Glass Lined Liquid Storage Tanks Advantages

30-year design life
lowest maintenance requirements over tank life
lowest total life cycle cost
fast-tracked construction
expandable
specific tank designs, options and accessories to meet customer needs
glass coatings do not require periodic repainting
graffiti can usually be removed in a matter of minutes


Glass Lined Liquid Storage Tanks Specifications

Coating colordark blue, dark green, white, and customized
A standard steel plate sizeeffective size 2400mm x 1200 m
Steel plates thickness3mm - 12mm, depends on the diameter & height
Coating thickness0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proofstandard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion3,450N/cm
Elasticsame as steel sheet, around 500KN/mm
Hardness6.0 Mohs
Service life>30 years
Spark test>1500 V
Permeabilitygas and liquid impermeable
Easy yo cleansmooth, glossy, inert, anti-adhesion
Corrosion resistanceexcellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds


Glass Lined Liquid Storage Tanks Applications

Center Enamel glass-lined steel water tanks and are ideal for the following applications:
Process Water Storage
Potable Water Storage
BioEnergy/Anaerobic Digesters
Wastewater Treatment
Leachate Treatment

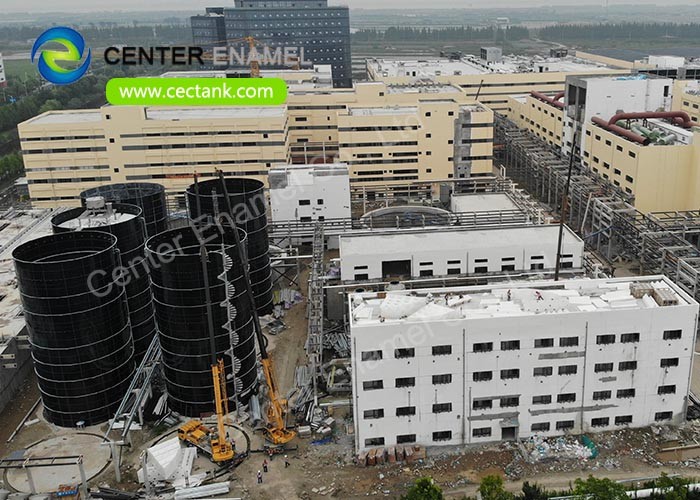

Glass Lined Liquid Storage Tanks Projects
