Place of Origin: | CHINA |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20180508003 |
Minimum Order Quantity: | 1 SET |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | CHINA | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Permeability: | Gas / Liquid Impermeable |
Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | High Light: | reactor Wastewater Storage Tanks,Concrete Digester Storage Tanks |

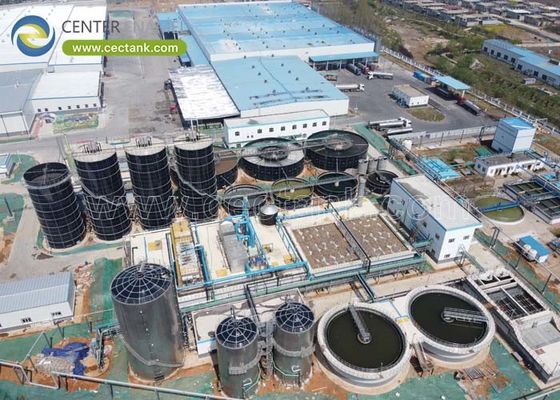

Glass Lined Waste Water Storage Tanks for Biogas Plant, Waste Water Treatment Plant
Glass lined steel tanks are the leader of water storage solutions, which is widely used as Waste Water Storage Tanks for Biogas Plant, Waste Water Treat Plant (WWTP) etc. With the advantage of both GLASS and STEEL, Glass lined waste water storage tanks can resist corrosion of Waste Water of PH 1 - 14. our glass lined waste water storage tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the glass lined waste water storage tanks structure's adequate security in long-term service life.
Glass lined waste water storage tanks Specification
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Products and Accessories
The glass lined waste water storage tanks are delivered as a complete package.
The standard set of glass lined waste water storage tanks include:
1. Glass fused to steel sheets
2. Self - Locking Bolts
3. Sealant
Below are also available accessories / parts for customer’s option:
1. Roofs
2. Manholes
3. Walkways
4. Working Platform
5. Ladders
