500KN Glass Lined Steel Wastewater Holding Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Tank Material: | Stainless Steel | Foundation: | Concrete |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Service Life: | ≥30 Years |
| Corrosion IntegrityStainless Steel Bolted Industrial Water Tanks Stainless Steel Bolted Tanks Are: | Excellent | Defect Free: | Minimum Maintenance Needed |
| High Light: | 500KN Wastewater Holding Tanks,FRP Roofs Wastewater Holding Tanks |
||
Product Description
Short construction period and lower prices Glass Lined Steel Wastewater Holding Tanks
The purpose of the water treatment process is to remove contaminants that exist in the water or reduce the concentration of such contaminants so the water becomes fit for its desired end-use.
Glass-lined steel holding tanks are not only used to store wastewater but also widely applied to other industries, such as wastewater treatment plants and environmental protection projects. The wastewater storage tank is a key component of the wastewater treatment system. Glass lined Steel wastewater storage tanks can be used for storage of industrial wastewater, domestic sewage as well as biogas.

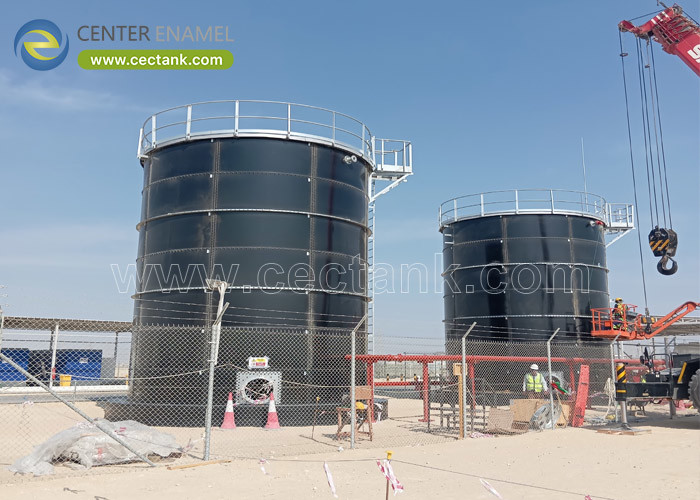

Glass Lined Steel Wastewater Holding Tanks
Glass-lined Steel wastewater holding tank also called glass fused to steel tanks.Glass Fused to Steel tanks are fusing two materials at 820°C-930°C high temperature to achieve the best properties of both the strength and flexibility of steel and the corrosion of resistance of glass. Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market.
Glass Lined Steel Wastewater Holding Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Lined Steel Wastewater Holding Tanks Roofs
Glass-Fused-to-Steel roof with external/internal beams
Aluminum Alloy Trough Deck Roofs
Single and Double Membrane Roofs
FRP Roofs
Aluminum Dome Roofs
Glass Lined Steel Wastewater Holding Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Lined Steel Wastewater Holding Tanks Project References
