Glass Lined Steel Rainwater Harvesting Storage Tanks Certificated And Approved By NSF/ ANSI 61
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Service Life: | ≥30 Years | Capactiy Available: | 20 M3 To 20,000 M3 |
| Foundation: | Concrete Or Glass Fused Steel | Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Tank Material: | Stainless Steel | Permeability: | Gas / Liquid Impermeable |
| High Light: | 20 m3 Harvesting Storage Tanks,SS Agricultural Water Storage Tanks |
||
Product Description
Glass Lined Steel Rainwater Harvesting Storage Tanks Certificated And Approved By NSF/ ANSI 61
Center Enamel can provide customized design glass-lined steel rainwater harvesting storage tanks for our customers, according to each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life. Our Glass-Fused-to-Steel tank is certificated and approved by NSF/ ANSI 61.
Rainwater harvesting has been used in countries around the world as a water source for households, livestock, irrigation and agricultural demands for many years. It is considered an energy and water-saving environmental enhancement for residential and commercial applications throughout the world.
Glass Lined Steel Rainwater Harvesting Storage Tanks
Glass Lined Steel Rainwater Harvesting Storage Tanks are fusing two materials at 820°C-930°C high temperature to achieve the best properties of both the strength and flexibility of steel and the corrosion of resistance of glass. Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market.
Glass Lined Steel Rainwater Harvesting Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Lined Steel Rainwater Harvesting Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

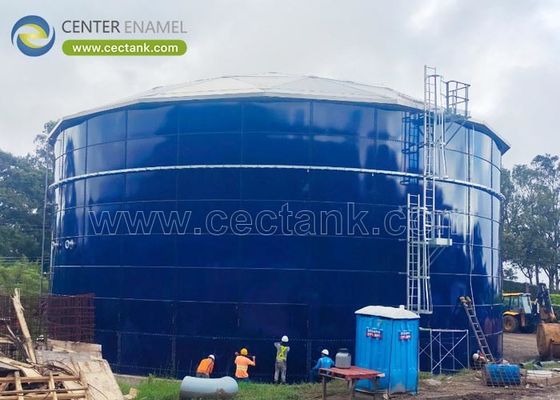

Glass Lined Steel Rainwater Harvesting Storage Tanks Project References
