Glass Fused To Steel Municipal Water Tanks With NSF ANSI 61 Certification

Product Details
Place of Origin: CHINA
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20180508003
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates;wooden pallets and wooden box
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin CHINA Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20180508003
Coating Color: Dark Green, Or Customizing Colors Coating Thickness: 0.25~0.40mm, Double Coating
Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 Adhesion: 3,450N/cm
Hardness: 6.0 Mohs Holiday Test: >1500V
Installation: By Jacking Machine Or Steel Pole, Fast In Installation Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion
Permeability: Gas / Liquid Impermeable Foundation: Concrete Or Glass Fused Steel
Steel Grade: ART 310 Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals
Impact Resistance: Excellent High Light:

Glass Lined Water Storage Tanks

,

ANSI 61 Municipal Water Tanks

Product Description

Glass Fused to Steel Municipal Water Tanks With NSF/ ANSI 61 Certification



Center Enamel specializes in municipal water solutions, we are the leading glass fused to steel tanks manufacturer in Asia. Glass fused to steel tanks is the perfect solutions for municipal water storage, which will help you stay on top of deadlines, reduce maintenance costs and more than 30 years service life. Our Glass-Fused-to-Steel tank is certificated and approved by NSF/ ANSI 61.



Glass-Fused-to-Steel municipal water tank can be designed with various diameter/height configurations according to different project requirements. This allows us to meet with various expectations of tank dimensions from plant owners and contractors. The minimum tank we can provide is with a capacity of 20m³; the maximum capacity of a single tank could reach as large as 25,000m³.



Glass Fused to Steel Municipal Water Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds









Glass Fused to Steel Municipal Water Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

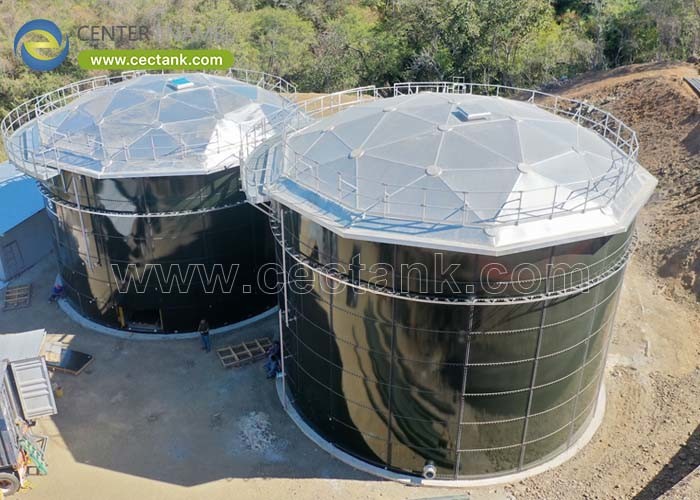

Glass Fused to Steel Municipal Water Tanks Project References



Glass Fused To Steel Municipal Water Tanks With NSF ANSI 61 Certification 0
