Glass Fused To Steel Bolted Storage Tanks For Municipal Sewage Treatment

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: J2016012311
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number J2016012311
PH Range: A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14 Coating Thickness: 0.25mm - 0.4mm, Two Coating Internal And External
Corrosion Resistance: Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Adhesion: 3,450N/cm
Permeability: Gas And Liquid Impermeable Acid And Alkalinity Proof: Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14
Elastic: Same As Steel Sheet , Around 500KN/mm Serive Life: More Than 30 Years
High Light:

glass fused to steel water tanks

,

above ground fuel storage tanks

,

sewage treatment glass fused to steel tanks

Product Description

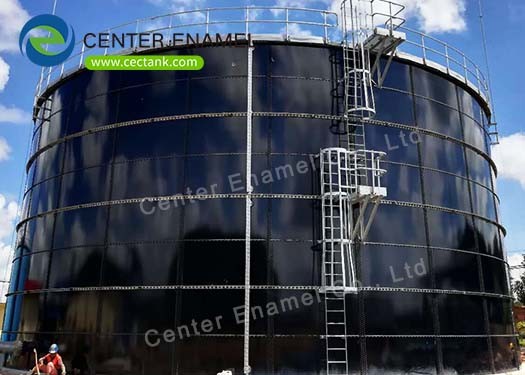

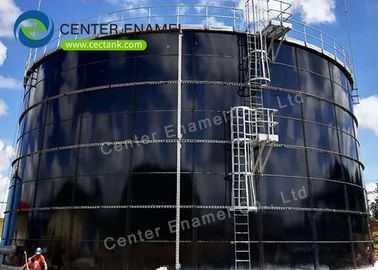

Glass Fused To Steel Bolted Storage Tanks For Municipal Sewage Treatment



Sewage treatment is the process of removing pollutants from municipal sewage, mainly including domestic sewage and some industrial wastewater. Physical, chemical, and biological processes are used to remove pollutants and produce treated wastewater (or treated wastewater) that is safe enough to be released into the environment. The by-product of sewage treatment is semi-solid waste or mud, called sewage sludge. Sludge must be further treated before it is suitable for disposal or application to the land.



Glass Fused to Steel tanks are widely used for municipal sewage treatment project. Glass fused to steel tanks combine the strength and flexibility of steel and the corrosion of glass. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market.



Glass Fused to Steel Tanks Advantages

Short construction period, cost-effective tank solution

Superior corrosion resistance, service life is more than 30 years

Easy to install, no need for big installation equipment and/or very skilled labors

Tank volume can be easily expanded

It can be dismantled, removed and relocated

Elegant appearance, tank color can be customized



Glass Fused to Steel Bolted Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds







Glass Fused to Steel Bolted Tanks Manufacturer



Center Enamel is a well established, world-leading storage tanks manufacturer in China. Center Enamel provides the best storage tank solutions for storage tank projects for drinking water, Agricultural Water Tanks Dry Bulk Storage Tanks Potable Water Tanks Process Water Tanks wastewater, biogas storage, municipal sewage, firewater, grain storage, agricultural, oil, and other bulk liquids. Center Enamel has more than 30 years of industry experience and proud track record in the design and site erection of storage tanks and over the years has grown into a world-leading storage tanks manufacturer. Until 2018, Center Enamel storage tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

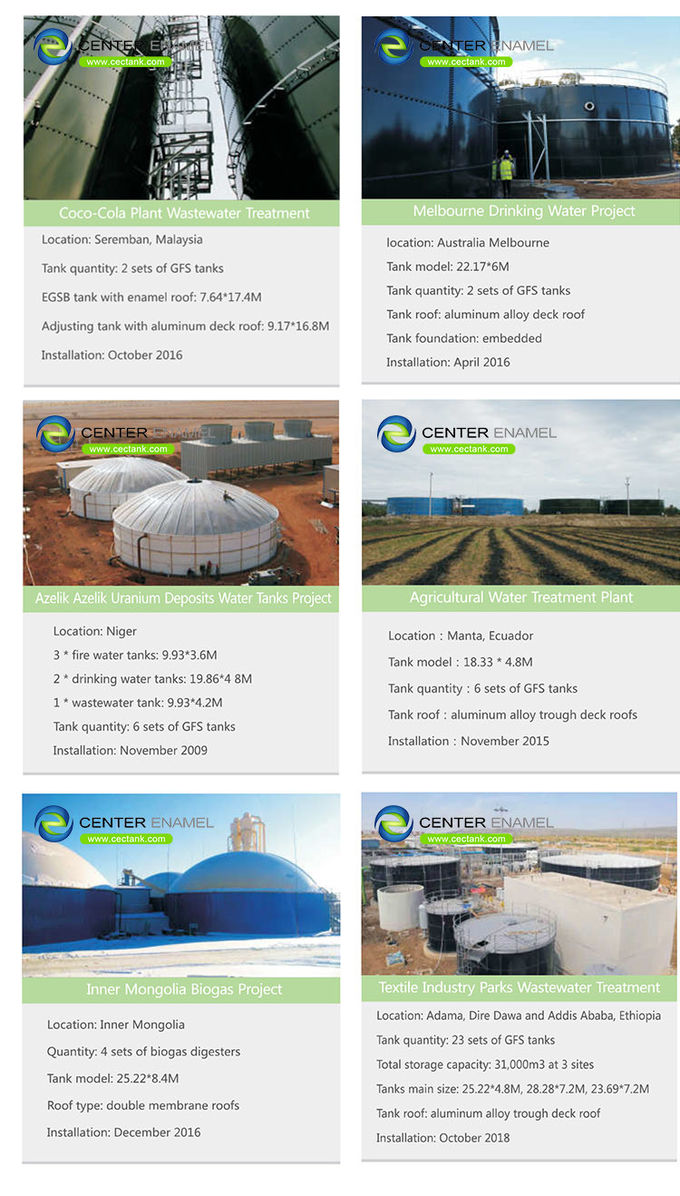

Glass Fused to Steel Bolted Tanks Project Reference



Glass Fused To Steel Bolted Storage Tanks For Municipal Sewage Treatment 0
