Center Enamel Provides Farm Biogas Storage Tanks With Customized Capacity
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | J2016012322 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012322 |
| Coating Thickness: | 4.0.25mm - 0.4mm, Two Coating Internal And External | Permeability: | Gas / Liquid Impermeable |
| Steel Plates Thickness: | 3mm - 12mm , Depends On The Diameter & Height | Hardness: | 6.0 ( Mohs ) |
| Adhesion: | 3,450 N/cm | Service Life: | Over 30 Years |
| High Light: | bio digester tank,biogas septic tank |
||
Product Description
Center Enamel provides farm biogas storage tanks with customized capacity. Our biogas storage tanks are made from the Glass-Fused-to-Steel sheet. The Glass-Fused-to-Steel plate is coated with 2 layers of enamel, after firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or weld painted storage tanks.
Biogas storage tanks are widely used in anaerobic digestion plants for biogas storage. The biogas produced by the anaerobic digester is composed of combustible gases methane (50-75%), carbon dioxide (25-50%), water (H2O), nitrogen (N2), oxygen (O2), hydrogen sulfide (H2S), ammonia (NH3) and trace elements (organic halide, siloxane, etc.).
If you inquire a best quality biogas storage tanks, let us help you build an anaerobic digester that will last. Our Glass-Fused-to-Steel tanks offer the best possible defense against the highly corrosive digestion process, Glass-Fused-to-Steel technology is the premium coating technology in the storage market.
Farm Biogas Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Farm Biogas Storage Tanks Manufacturer
Center Enamel is a well established, world-leading storage tanks manufacturer in China. Center Enamel provides the best storage tank solutions for storage tank projects for drinking water, Agricultural Water Tanks Dry Bulk Storage Tanks Potable Water Tanks Process Water Tanks wastewater, biogas storage, municipal sewage, firewater, grain storage, agricultural, oil, and other bulk liquids. Center Enamel has more than 30 years of industry experience and proud track record in the design and site erection of storage tanks and over the years has grown into a world-leading storage tanks manufacturer. Until 2018, Center Enamel storage tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

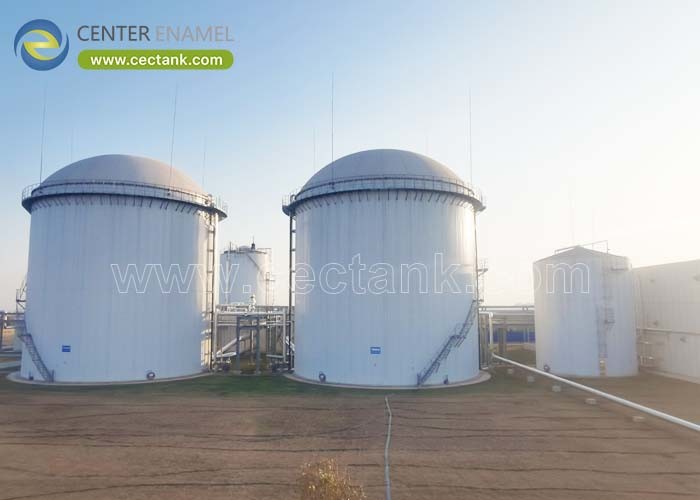

Farm Biogas Storage Tanks Project Reference
